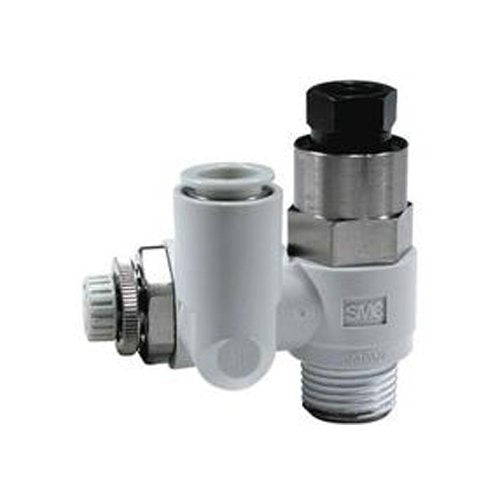

SMC ASP330F0106S (ASP330F-01-06S) - Speed Controller with Pilot Check Valve, R1/8 x Φ6 mm one-touch fitting, pilot check valve speed controller

SMC ASP330F0106S Speed Controller with Pilot Check Valve — With pilot check valve, R1/8 cylinder port with Φ6 mm one-touch fitting, hexagon lock nut. ASP Series speed controller combined with a pilot check valve and one-touch fitting. Body size 3 (1/8 standard). Port size 01: cylinder side R1/8, pilot port M5 x 0.8. Applicable tubing O.D. Φ6 mm. Hexagon lock nut option (S). The pilot check valve enables momentary intermediate stopping of a cylinder while retaining speed adjustment.

MPN: ASP330F-01-06S · SKU: ASP330F0106S

ASP330F-01-06S Applications

The ASP330F-01-06S integrates a pilot check valve with a one-touch-fitting speed controller so a pneumatic cylinder can be held at an intermediate position and released on pilot signal, while still allowing meter-out speed adjustment. It connects on the cylinder side via R1/8 thread and Φ6 mm tubing, with an M5 pilot port. Used where drop-prevention, mid-stroke stopping, or safe holding of vertical cylinder loads is required.

ASP330F-01-06S Specifications
