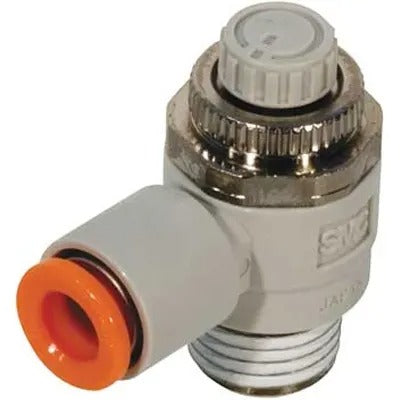

SMC AS3201FN0311S (AS3201F-N03-11S) - Speed Controller with One-touch Fitting, NPT 3/8 x Φ3/8" one-touch fitting, meter-out elbow speed controller

SMC AS3201FN0311S Speed Controller with One-touch Fitting — Elbow type, meter-out, NPT 3/8 thread with Φ3/8" one-touch fitting, with sealant. AS Series elbow-type speed controller with one-touch fitting. Body size 3. Meter-out (exhaust) control. Thread type NPT (N03 = NPT 3/8), applicable tubing O.D. 11 = Φ3/8 inch. Supplied with sealant on thread. Push-lock adjustment knob, electroless nickel plated body, 360 degree swivel (universal) piping. Max operating pressure 1 MPa (145 psi).

MPN: AS3201F-N03-11S · SKU: AS3201FN0311S

AS3201F-N03-11S Applications

The AS3201F-N03-11S sets pneumatic cylinder speed by metering exhaust air through an integral one-touch fitting that accepts Φ3/8 inch tubing, with an NPT 3/8 male thread pre-treated with sealant for direct, leak-tight port mounting. The elbow body swivels for flexible routing and the push-lock knob secures the setting. Suited to larger-bore cylinders and higher-flow lines in general industrial automation.

AS3201F-N03-11S Specifications
