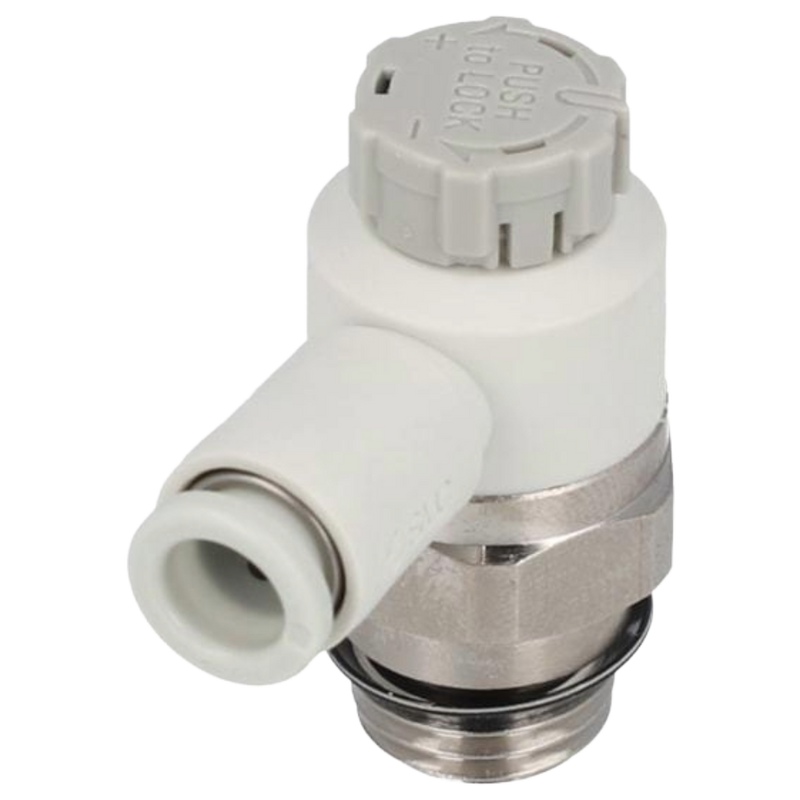

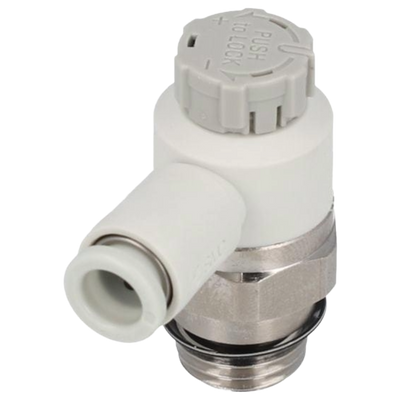

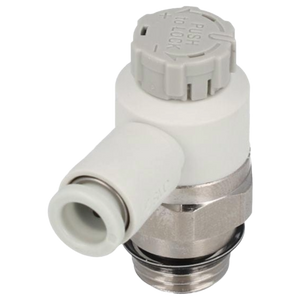

SMC AS2201FU0206A (AS2201F-U02-06A) - Speed Controller, Uni R1/4 x ø6mm one-touch, universal speed controller

SMC AS2201FU0206A Speed Controller — Universal one-touch, meter-out, push-lock, sealant A option. Universal-type speed controller with Uni one-touch fitting, meter-out control, R1/4 male thread inlet, ø6 mm applicable tubing O.D. Universal (U) body allows 360° swivel piping. Push-lock adjustment with enlarged knob, electroless nickel plated body. A option = with sealant on thread.

MPN: AS2201F-U02-06A · SKU: AS2201FU0206A

AS2201F-U02-06A Applications

Threads into a cylinder or valve port to control actuator speed by metering exhaust air while the built-in check valve permits free supply. The universal swivel body lets the fitting rotate 360° so tubing can be routed in any direction after installation, and the pre-applied thread sealant (A) speeds leak-free assembly. The push-lock knob locks the set flow rate without tools, ideal for repeatable machine setups.

AS2201F-U02-06A Specifications
