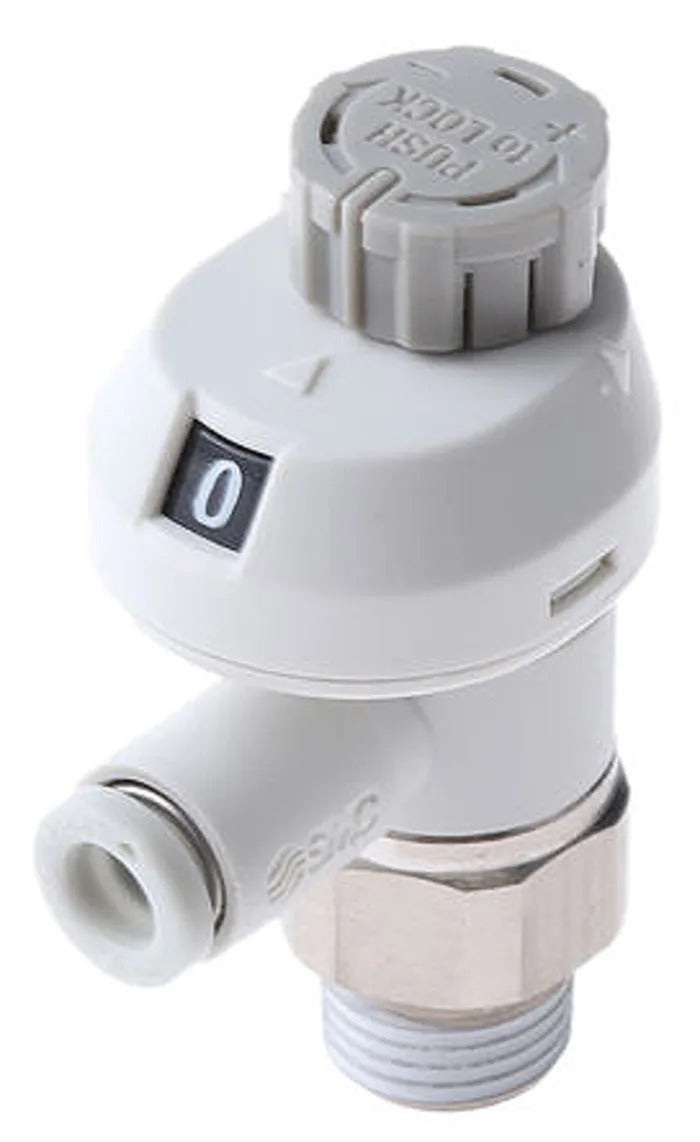

SMC AS2201FS0106S (AS2201F-S01-06S) - Speed Controller with One-touch Fitting, NPTF 1/8 x Φ6 mm one-touch fitting, meter-out elbow speed controller

SMC AS2201FS0106S Speed Controller with One-touch Fitting — Elbow type, meter-out, NPTF 1/8 thread with Φ6 mm one-touch fitting, with sealant (vs AS2201FS0106 without sealant). AS Series elbow-type speed controller with one-touch fitting. Body size 2 (1/8, 1/4). Meter-out (exhaust) control. Thread type NPTF (S01 = NPTF 1/8), applicable tubing O.D. Φ6 mm. Supplied with sealant on thread (trailing S). Push-lock adjustment knob, electroless nickel plated body, 360 degree swivel (universal) piping. Max operating pressure 1 MPa.

MPN: AS2201F-S01-06S · SKU: AS2201FS0106S

AS2201F-S01-06S Applications

The AS2201FS0106S is the pre-sealed version of the AS2201F-S01-06, differing only by factory-applied thread sealant that lets it thread into a cylinder port without added tape or paste. It controls cylinder speed by metering exhaust air, accepts Φ6 mm tubing in its one-touch fitting, and uses a push-lock knob to hold the flow setting. Ideal for fast, leak-tight installation in general pneumatic automation.

AS2201F-S01-06S Specifications
