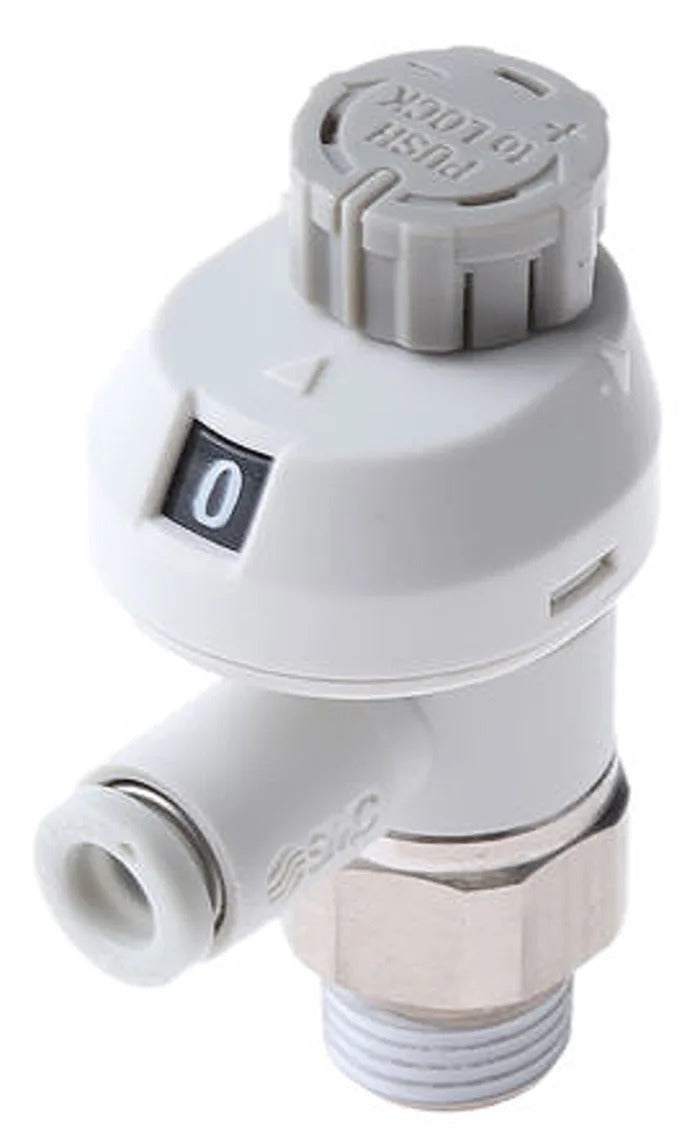

SMC AS2201FS0106 (AS2201F-S01-06) - Speed Controller with One-touch Fitting, NPTF 1/8 x Φ6 mm one-touch fitting, meter-out elbow speed controller

SMC AS2201FS0106 Speed Controller with One-touch Fitting — Elbow type, meter-out, NPTF 1/8 thread with Φ6 mm one-touch fitting, without sealant. AS Series elbow-type speed controller with one-touch fitting. Body size 2 (1/8, 1/4). Meter-out (exhaust) control. Thread type NPTF (S01 = NPTF 1/8), applicable tubing O.D. Φ6 mm. Supplied without sealant. Push-lock adjustment knob, electroless nickel plated body, 360 degree swivel (universal) piping. Max operating pressure 1 MPa.

MPN: AS2201F-S01-06 · SKU: AS2201FS0106

AS2201F-S01-06 Applications

The AS2201F-S01-06 controls cylinder speed by throttling exhaust (meter-out) air. It combines a compact elbow body with a Φ6 mm one-touch fitting and an NPTF 1/8 male thread that mounts directly into a port without pipe sealant applied. The swivel body eases tube routing and the push-lock knob locks the flow setting. Use where tool-free, space-saving speed adjustment of pneumatic cylinders is needed and thread sealing is applied separately.

AS2201F-S01-06 Specifications
