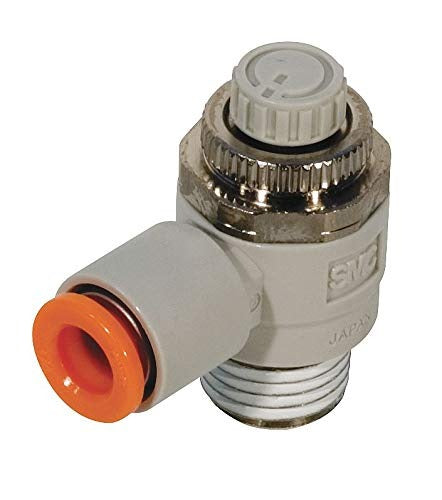

SMC AS2201FN0206S (AS2201F-N02-06S) - Speed Controller with One-touch Fitting, NPT 1/4 x Φ6 mm one-touch fitting, meter-out elbow speed controller

SMC AS2201FN0206S Speed Controller with One-touch Fitting — Elbow type, meter-out, NPT 1/4 thread with Φ6 mm one-touch fitting, with sealant. AS Series elbow-type speed controller with one-touch fitting. Body size 2 (1/8, 1/4). Meter-out (exhaust) control with blue knob. Thread type NPT (N02 = NPT 1/4), applicable tubing O.D. Φ6 mm. With sealant on thread. Push-lock adjustment, electroless nickel plated body, 360 degree swivel piping (universal). Max operating pressure 1 MPa.

MPN: AS2201F-N02-06S · SKU: AS2201FN0206S

AS2201F-N02-06S Applications

The AS2201F-N02-06S regulates cylinder actuation speed by controlling exhaust (meter-out) air flow. Its integral one-touch fitting accepts Φ6 mm tubing while the NPT 1/4 thread screws directly into a cylinder port, reducing mounting height and installation time. The elbow body swivels for flexible tube routing and a push-lock knob prevents accidental adjustment. Suited to general pneumatic automation where compact, tool-free speed control of double-acting cylinders is required.

AS2201F-N02-06S Specifications
