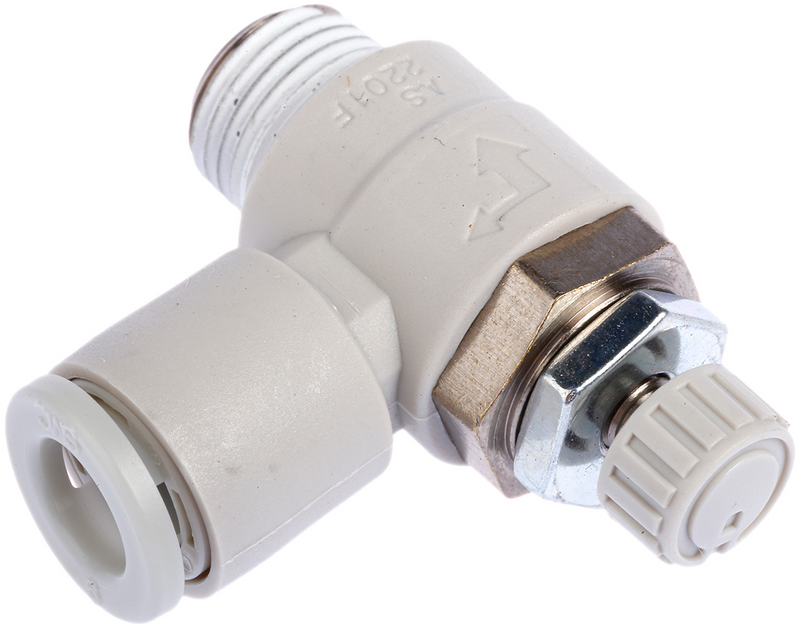

SMC AS2201FN0106S (AS2201F-N01-06S) - Speed Controller, NPT1/8 x Ø6 one-touch, elbow speed controller

SMC AS2201FN0106S Speed Controller — Elbow, meter-out, NPT1/8 thread x Ø6 one-touch fitting, with sealant. SMC AS2000 series elbow speed controller with one-touch fitting, body size 2. Meter-out flow control. Connection thread NPT 1/8 (code N01). Applicable tube O.D. Ø6 mm (code 06). With sealant on thread (option S). Applicable tubing: nylon, soft nylon, polyurethane. Fluid: air. Maximum operating pressure 1.0 MPa, proof pressure 1.5 MPa, minimum operating pressure 0.1 MPa. Ambient and fluid temperature -5 to 60 C. Push-lock needle handle.

MPN: AS2201F-N01-06S · SKU: AS2201FN0106S

AS2201F-N01-06S Applications

The AS2201F-N01-06S is an elbow-type meter-out speed controller with a Ø6 mm one-touch fitting and an NPT 1/8 male thread pre-coated with sealant for a leak-tight connection. Meter-out control throttles cylinder exhaust for smooth, adjustable actuator speed. The rotatable elbow body and one-touch fitting simplify installation in tight spaces. Used on air cylinders in factory automation and handling equipment specifying NPT-threaded ports.

AS2201F-N01-06S Specifications
