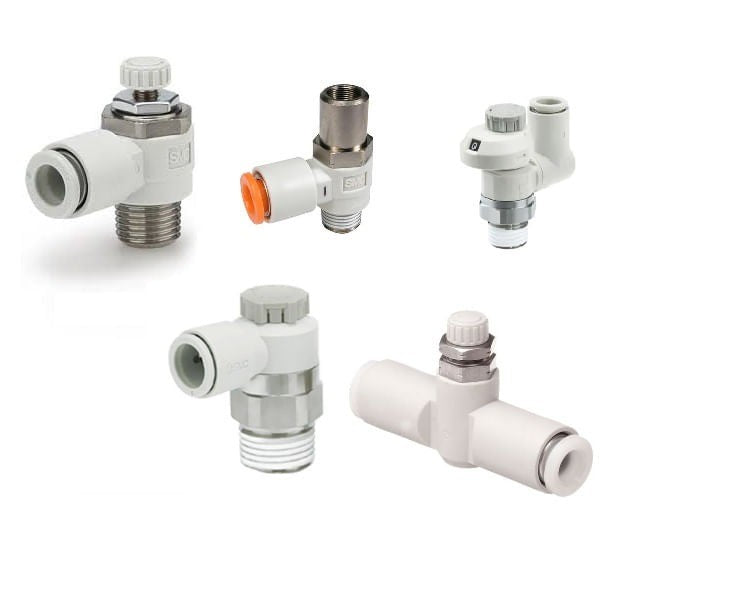

SMC AS2201F0208W2 (AS2201F-02-08-W2) - Speed Controller, R1/4 x ø8mm one-touch, elbow speed controller

SMC AS2201F0208W2 Speed Controller — Elbow, meter-out, push-lock, flame-resistant W2 option. Elbow-type speed controller with built-in one-touch fitting, meter-out control, R1/4 male thread inlet, ø8 mm applicable tubing O.D. Push-lock adjustment with enlarged knob, electroless nickel plated body, 360° swivel piping. W2 = flame-resistant specification (equivalent to UL-94 V-0) for use with FR tubing. Max operating pressure 1 MPa.

MPN: AS2201F-02-08-W2 · SKU: AS2201F0208W2

AS2201F-02-08-W2 Applications

Fits directly into a cylinder port to regulate actuator extend/retract speed by metering exhaust air while allowing free supply flow through the built-in check valve. The elbow one-touch body reduces mounting height and installation time in tight machine layouts, and the push-lock knob locks the flow setting without tools. The W2 flame-resistant construction suits applications near welding, laser or heat sources where standard resin fittings are unsuitable.

AS2201F-02-08-W2 Specifications
