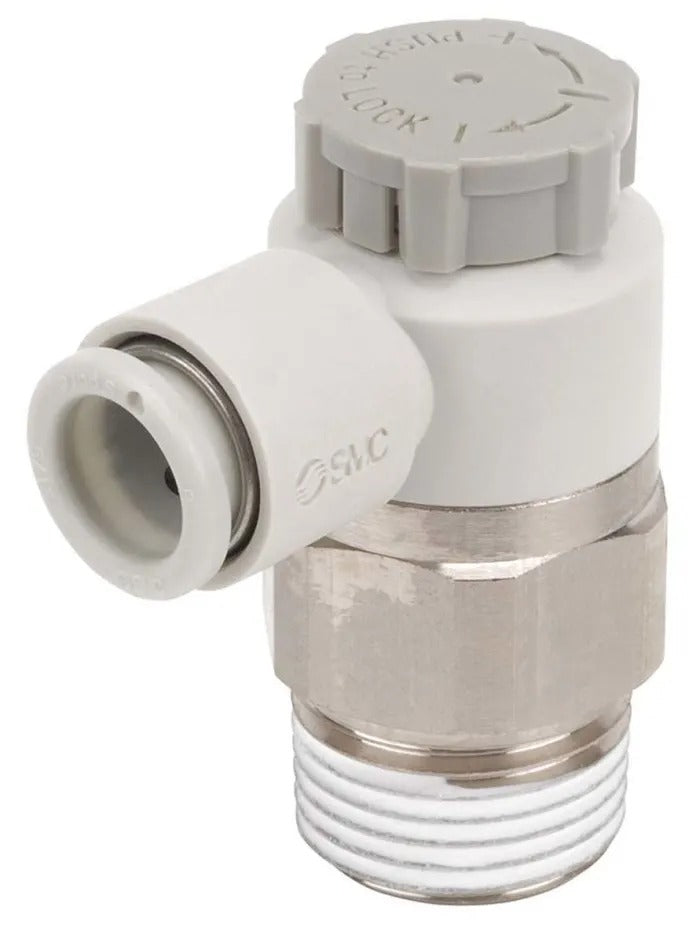

SMC AS2201F0208SA (AS2201F-02-08SA) - Speed Controller, R1/4 x Ø8 one-touch, elbow speed controller

SMC AS2201F0208SA Speed Controller — Elbow, meter-out, R1/4 thread x Ø8 one-touch fitting, with sealant. SMC AS2000 series elbow speed controller with one-touch fitting, body size 2. Meter-out flow control. Connection thread R(PT) 1/4 (code 02). Applicable tube O.D. Ø8 mm (code 08). With sealant on thread (option S). Applicable tubing: nylon, soft nylon, polyurethane. Fluid: air. Maximum operating pressure 1.0 MPa, proof pressure 1.5 MPa, minimum operating pressure 0.1 MPa. Ambient and fluid temperature -5 to 60 C. Push-lock needle handle. (Trailing A option not defined in the AS EU catalog.).

MPN: AS2201F-02-08SA · SKU: AS2201F0208SA

AS2201F-02-08SA Applications

The AS2201F-02-08SA is an elbow-type meter-out speed controller with a Ø8 mm one-touch fitting and an R1/4 male thread pre-coated with sealant for a leak-tight installation. Meter-out control throttles cylinder exhaust for smooth, adjustable actuator speed. The rotatable elbow body and one-touch fitting simplify tubing in confined spaces. Suited to larger air cylinders on automation, assembly and handling machinery requiring a 1/4 port with Ø8 tubing.

AS2201F-02-08SA Specifications
