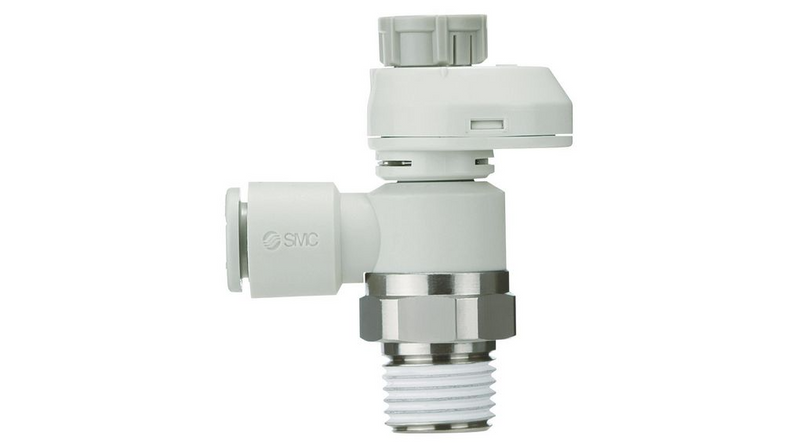

SMC AS2201F0206SA (AS2201F-02-06SA) - Speed Controller, R1/4 x tube 6 mm w/ sealant, Meter-out elbow Speed Controller

SMC AS2201F0206SA Speed Controller — Elbow type with One-touch fitting, R1/4 thread with sealant for 6 mm tube, meter-out. AS series elbow-type speed controller with One-touch fitting, body size 2/3/4. R1/4 (Rc1/4, thread code 02) port with pre-applied sealant (SA), applicable tube O.D. 6 mm. Meter-out control, push-lock handle. Max operating pressure 1.0 MPa, operating temperature -5 to 60 C. Blue handle meter-in / gray handle meter-out.

MPN: AS2201F-02-06SA · SKU: AS2201F0206SA

AS2201F-02-06SA Applications

The AS2201F-02-06SA is an elbow-type speed controller with One-touch fitting from SMC's AS series, combining an R1/4 threaded port with pre-applied sealant and a 6 mm tube connection. Meter-out control regulates cylinder exhaust for smooth actuator speed, while the factory sealant lets the fitting thread directly into a port without additional tape for a fast, leak-tight installation. The push-lock handle enables tool-free flow adjustment with color-coded meter-in/meter-out identification, making it well suited to production automation and cylinder speed tuning.

AS2201F-02-06SA Specifications
