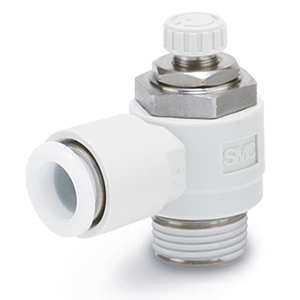

SMC AS2201F0108S (AS2201F-01-08S) - Speed Controller, R1/8 x Ø8 one-touch, elbow speed controller

SMC AS2201F0108S Speed Controller — Elbow, meter-out, R1/8 thread x Ø8 one-touch fitting, with sealant. SMC AS2000 series elbow speed controller with one-touch fitting, body size 2. Meter-out flow control. Connection thread R(PT) 1/8 (code 01). Applicable tube O.D. Ø8 mm (code 08). With sealant on thread (option S). Applicable tubing: nylon, soft nylon, polyurethane. Fluid: air. Maximum operating pressure 1.0 MPa, proof pressure 1.5 MPa, minimum operating pressure 0.1 MPa. Ambient and fluid temperature -5 to 60 C. Push-lock needle handle.

MPN: AS2201F-01-08S · SKU: AS2201F0108S

AS2201F-01-08S Applications

The AS2201F-01-08S is an elbow-type meter-out speed controller with a Ø8 mm one-touch fitting and an R1/8 male thread pre-coated with sealant for a leak-tight installation. Meter-out control throttles cylinder exhaust for smooth, adjustable actuator speed. The rotatable elbow body and one-touch fitting simplify tubing in tight spaces. Suited to air cylinders on automation, assembly and handling machinery where larger Ø8 tubing is used with a 1/8 port.

AS2201F-01-08S Specifications
