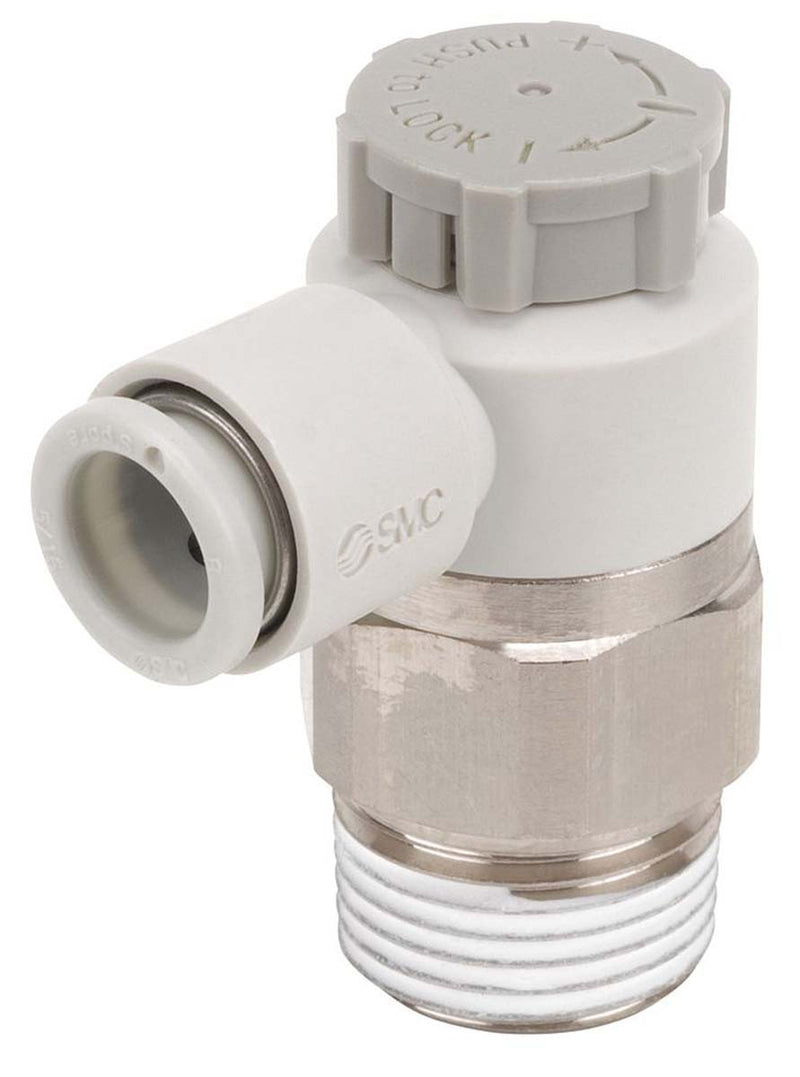

SMC AS1201FM5E06A (AS1201F-M5E-06A) - Speed Controller, M5 x tube 6 mm, Push-lock elbow Speed Controller

SMC AS1201FM5E06A Speed Controller — Elbow type with One-touch fitting, push-lock, M5 port for 6 mm tube, meter-out. AS series elbow-type speed controller with One-touch fitting, body size 1, push-lock handle (A). M5 thread port, applicable tube O.D. 6 mm. Meter-out control. Max operating pressure 1.0 MPa, operating temperature -5 to 60 C. Blue handle meter-in / gray handle meter-out identification; larger push-lock handle for tool-free needle lock.

MPN: AS1201F-M5E-06A · SKU: AS1201FM5E06A

AS1201F-M5E-06A Applications

The AS1201F-M5E-06A is an elbow-type speed controller with One-touch fitting from SMC's AS series, upsized to a 6 mm tube on an M5 port for compact cylinders needing higher flow. Its improved push-lock handle allows tool-free flow-rate adjustment and secure locking, with color-coded handles for quick meter-in versus meter-out identification. Suited to space-constrained automation, the rotatable elbow body eases tube routing while delivering smooth, repeatable actuator speed control on assembly, packaging and handling machinery.

AS1201F-M5E-06A Specifications
