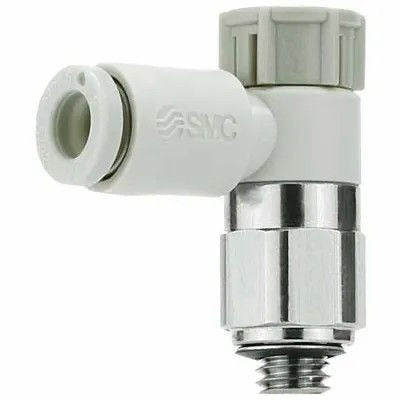

SMC AS1201FM506A (AS1201F-M5-06A) - Speed Controller, M5 x Ø6 one-touch, elbow speed controller

SMC AS1201FM506A Speed Controller — Elbow, meter-out, M5 thread x Ø6 one-touch fitting. SMC AS1000 series elbow speed controller with one-touch fitting, body size 1. Meter-out flow control. Connection thread M5 x 0.8. Applicable tube O.D. Ø6 mm. Applicable tubing: nylon, soft nylon, polyurethane. Fluid: air. Maximum operating pressure 1.0 MPa, proof pressure 1.5 MPa, minimum operating pressure 0.1 MPa. Ambient and fluid temperature -5 to 60 C. Push-lock needle handle. Body rotatable for easy installation. (Trailing A option not defined in the AS EU catalog.).

MPN: AS1201F-M5-06A · SKU: AS1201FM506A

AS1201F-M5-06A Applications

The AS1201F-M5-06A is a compact elbow-type meter-out speed controller with a built-in Ø6 mm one-touch fitting and an M5 x 0.8 male thread, used to control the actuator speed of small air cylinders. Meter-out control throttles exhaust for smooth, stable cylinder motion. The one-touch fitting speeds tubing connection and the rotatable elbow body eases installation in tight spaces. Suited to compact automation, pick-and-place and small pneumatic actuators. Push-lock needle prevents accidental adjustment.

AS1201F-M5-06A Specifications
