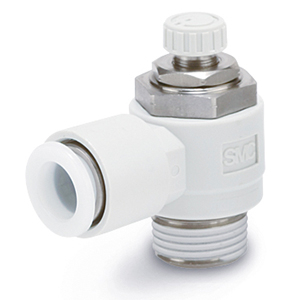

SMC AS1201FM504 (AS1201F-M5-04) - Speed Controller, M5 x 0.8 x tube 4 mm, Meter-out elbow Speed Controller

SMC AS1201FM504 Speed Controller — Elbow type with One-touch fitting, M5 x 0.8 port for 4 mm tube, meter-out. AS series elbow-type speed controller with One-touch fitting, body size 1. M5 x 0.8 thread port, applicable tube O.D. 4 mm. Meter-out control. Max operating pressure 1.0 MPa, operating temperature -5 to 60 C. PBT/brass body. Rotatable body for easy installation.

MPN: AS1201F-M5-04 · SKU: AS1201FM504

AS1201F-M5-04 Applications

The AS1201F-M5-04 is a compact elbow-type speed controller with a One-touch fitting from SMC's AS series, controlling actuator speed by metering out exhaust air. Its M5 x 0.8 port and 4 mm tube One-touch connection make it ideal for small cylinders and tight-space installations on compact automation, pick-and-place and assembly equipment. The rotatable elbow body simplifies routing, while the graduated needle adjustment lets technicians set and repeat precise flow rates for smooth, controlled cylinder motion.

AS1201F-M5-04 Specifications
