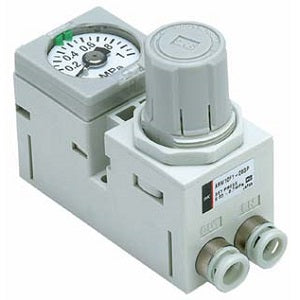

SMC ARM10F108BG (ARM10F1-08-BG) - Compact Manifold Regulator, Single Unit Type, Front Handle Type, IN/OUT One-touch ø6

SMC ARM10F108BG Compact Manifold Regulator, Single Unit Type, Front Handle Type — ARM10F front-handle single-unit type, piping position 1, IN/OUT straight one-touch fitting size 08 (IN ø6 / OUT ø6), with bracket and gauge (BG). ARM10F Series compact manifold regulator, single unit front-handle type. Piping position 1; fitting type 08: IN side straight ø6, OUT side straight ø6 one-touch fittings. Accessory BG = bracket plus pressure gauge (panel nut included). Front-adjusting knob for face-panel access. Direct-acting diaphragm regulator with backflow function as standard. Max operating pressure 1.0 MPa, proof pressure 1.5 MPa, set pressure range 0.05 to 0.7 MPa. Fluid: air. Ambient/fluid temperature 5 to 60°C. Weight approx. 72 g.

MPN: ARM10F1-08-BG · SKU: ARM10F108BG

ARM10F1-08-BG Applications

The ARM10F1-08-BG is a front-handle compact single-unit regulator supplied with bracket and gauge, letting the pressure knob and readout face the operator when the unit is panel-mounted. The front-adjust design suits control panels and manifold-adjacent installs where access is only from the front. With ø6 one-touch IN/OUT fittings it feeds instrument- and pilot-air lines to cylinders, valves and grippers, and its standard backflow function relieves downstream residual air.

ARM10F1-08-BG Specifications
