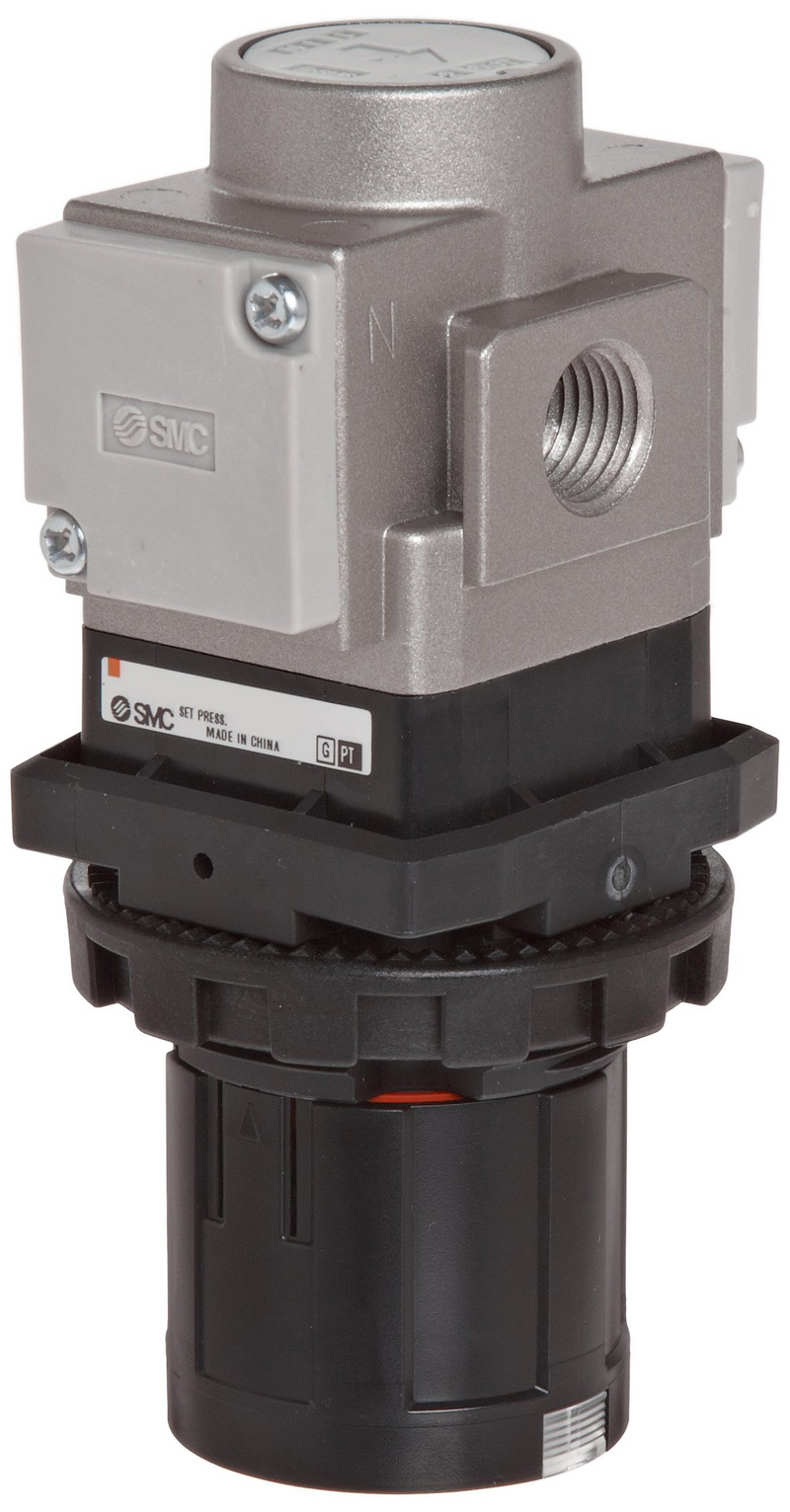

SMC ARG3002G1HB (ARG30-02G1H-B) - Regulator with Built-in Pressure Gauge, Rc 1/4 port

SMC ARG3002G1HB Regulator with Built-in Pressure Gauge — Modular regulator with gauge built into the handle, body size 30, Rc1/4. ARG30-B series modular air pressure regulator with built-in pressure gauge, body size 30, Rc 1/4 (02) ports, gauge mounting angle G1 (0 deg), H = pressure gauge built into the handle, B = with bracket. Relieving type; set pressure range 0.05 to 0.85 MPa; fluid air; ambient/fluid temperature -5 to 60 C; proof pressure 1.5 MPa.

MPN: ARG30-02G1H-B · SKU: ARG3002G1HB

ARG30-02G1H-B Applications

The SMC ARG30-02G1H-B is a modular air pressure regulator with the pressure gauge built directly into the adjustment handle, giving compact, top-down visibility of set pressure. Body size 30 with Rc 1/4 ports suits general pneumatic lines within an FRL stack. The H gauge-in-handle design keeps a low profile and, with the anti-revolving mechanism, the gauge stays readable as the handle turns; the B option adds a mounting bracket. Relieving type for accurate downstream control in automation and machinery.

ARG30-02G1H-B Specifications
