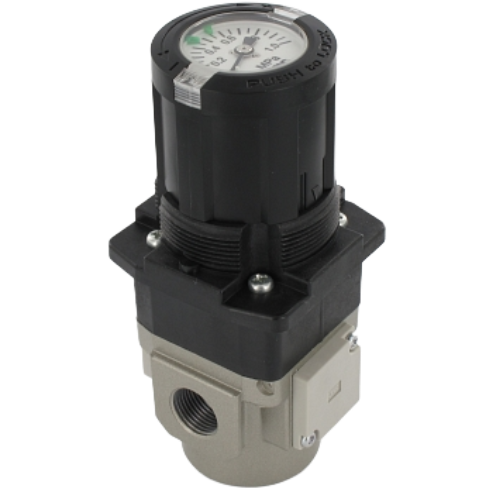

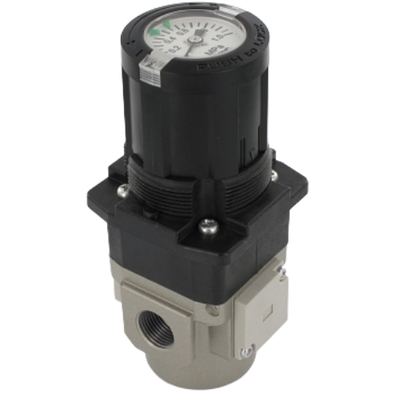

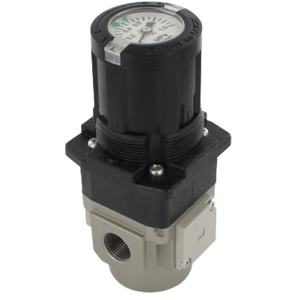

SMC ARG20KF01G1B (ARG20K-F01G1-B) - Regulator, G1/8 port, regulator with built-in gauge

SMC ARG20KF01G1B Regulator — Regulator with built-in pressure gauge in the handle, lock knob, G1/8. Modular type regulator with built-in pressure gauge (gauge integrated in handle), body size 20; K = lock-type adjustment knob; F01 = G1/8 (front) ports; G1 gauge option; backflow function option (-B series); max operating pressure 1 MPa; pressure gauge anti-revolving mechanism, no panel-cut required.

MPN: ARG20K-F01G1-B · SKU: ARG20KF01G1B

ARG20K-F01G1-B Applications

The ARG20K-F01G1-B is a modular air regulator with the pressure gauge built into the adjustment handle, saving space and removing the need for a panel cut. The K lock knob prevents accidental setting changes, and the selectable gauge mounting angle adapts to piping direction. With G1/8 ports and backflow function, it suits compact FRL stations and machine air panels where clear pressure indication and secure settings are needed.

ARG20K-F01G1-B Specifications
