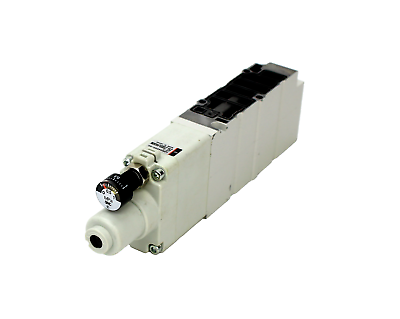

SMC ARBQ400000P1 (ARBQ4000-00-P-1) - Interface Regulator, VQ4000 valve interface

SMC ARBQ400000P1 Interface Regulator — Spacer/interface regulator for VQ4000 5-port solenoid valves, P-port reduction. ARBQ4000 interface (spacer type) regulator for VQ4000 series 5-port solenoid valves; mounts directly between valve and manifold base with no additional piping. 00 = standard, P = P-port (supply) pressure reduction, 1 = option. Set pressure range approx 0.05 to 0.85 MPa. Enables dual-pressure control on the manifold. Recommended mounting torque 0.9 N.m.

MPN: ARBQ4000-00-P-1 · SKU: ARBQ400000P1

ARBQ4000-00-P-1 Applications

The SMC ARBQ4000-00-P-1 is an interface (spacer-type) regulator that fits directly between a VQ4000 series 5-port solenoid valve and its manifold base, requiring no extra piping. The P designation regulates the supply (P) port, enabling dual-pressure control so two different pressures can be delivered on the same manifold or actuator. It gives clean, compact pressure reduction for individual stations in valve-manifold automation systems. Set downstream pressure to no more than 85% of upstream; tighten mounting bolts to 0.9 N.m.

ARBQ4000-00-P-1 Specifications
