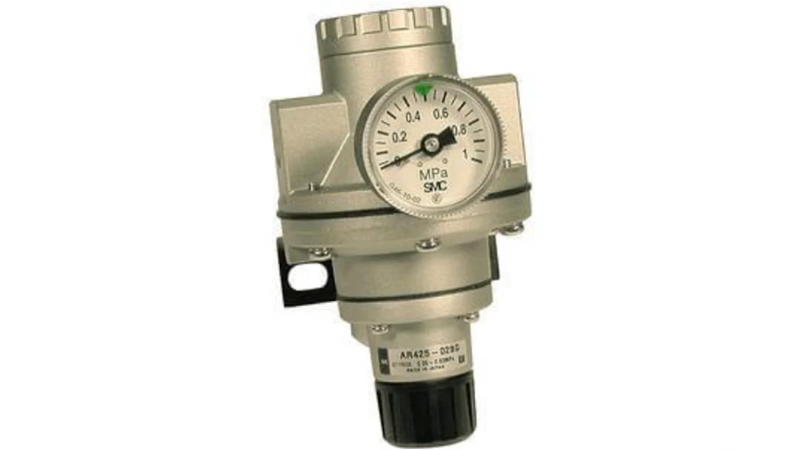

SMC AR92520 (AR925-20) - Pilot-Operated Regulator, 1/4 pilot port

SMC AR92520 Pilot-Operated Regulator — Large-capacity internal-pilot regulator with 1/4 pilot connection. AR925 pilot-operated (internal pilot) air pressure regulator, part of the AR425/AR935 series, port/pilot code 20 (1/4). Relieving type. Large-capacity regulator designed for stable regulation of high-flow lines. Fluid air; confirm full pressure ratings on SMC datasheet.

MPN: AR925-20 · SKU: AR92520

AR925-20 Applications

The SMC AR925-20 is a pilot-operated air pressure regulator from the AR425/AR935 large-capacity series. Internal-pilot operation gives flat, stable regulation characteristics across a wide flow range, making it suited to main-line and high-consumption pneumatic circuits where standard direct-operated regulators would droop. The 20 code denotes the 1/4 pilot/port option. Used in industrial automation, air-supply headers and machinery requiring accurate downstream pressure at high flow. Verify full pressure ratings against the SMC datasheet.

AR925-20 Specifications
