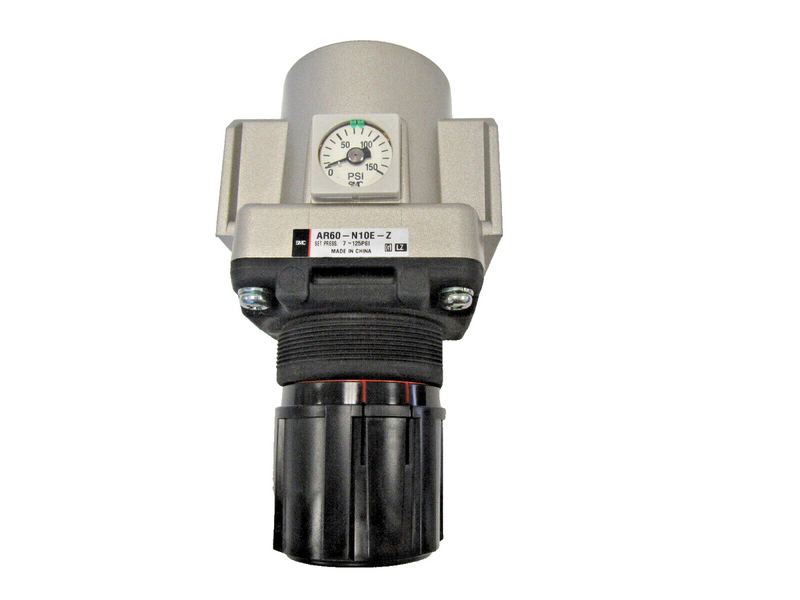

SMC AR60N10EZ (AR60-N10E-Z) - Regulator, 1 NPT port

SMC AR60N10EZ Regulator — Modular F.R.L. regulator, 1 NPT, embedded gauge, Z option. Modular type regulator, body size 60; 1 NPT (N10) ports; embedded gauge (E); Z option; set pressure range approx 0.05 to 0.85 MPa (7 to 125 psi); max operating pressure 1 MPa (145 psi); relieving type; downward knob; weight approx 1.22 kg.

MPN: AR60-N10E-Z · SKU: AR60N10EZ

AR60-N10E-Z Applications

The AR60-N10E-Z is a large modular air pressure regulator with a 1 NPT port and embedded pressure gauge, delivering stable regulated pressure from about 0.05 to 0.85 MPa with relieving action. Sized for high-flow applications, it connects with matching AR-series filters and lubricators to build large FRL air-preparation stations for main air lines and heavy pneumatic machinery in NPT-piped facilities.

AR60-N10E-Z Specifications
