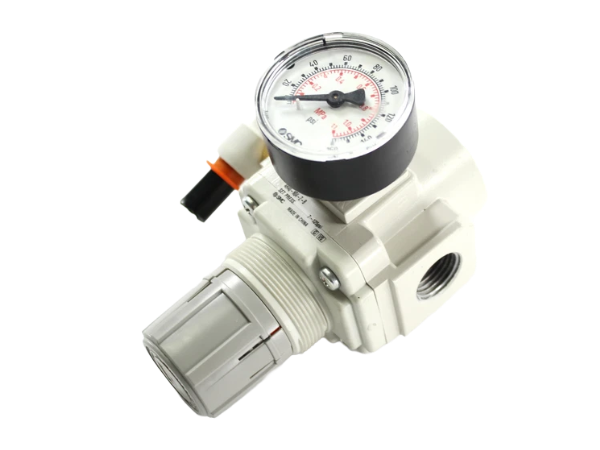

SMC AR40N04ZB (AR40-N04-Z-B) - Regulator, 1/2 NPT port

SMC AR40N04ZB Regulator — Modular F.R.L. regulator, 1/2 NPT, Z option with backflow function. Modular type regulator, body size 40; 1/2 NPT (N04) ports; Z option; backflow function option (-B series); set pressure range approx 0.05 to 0.85 MPa (7 to 125 psi); max operating pressure 1 MPa; die-cast aluminum body; operating temperature -5 to 60 deg C; relieving type.

MPN: AR40-N04-Z-B · SKU: AR40N04ZB

AR40-N04-Z-B Applications

The AR40-N04-Z-B is a modular air pressure regulator with a 1/2 NPT port and die-cast aluminum body, providing stable downstream pressure regulation from about 0.05 to 0.85 MPa with relieving action. The Z option and backflow function suit systems needing residual pressure release, while modular AR-B connectivity lets it join matching filters and lubricators for larger FRL air-preparation stations in NPT-piped machinery.

AR40-N04-Z-B Specifications
