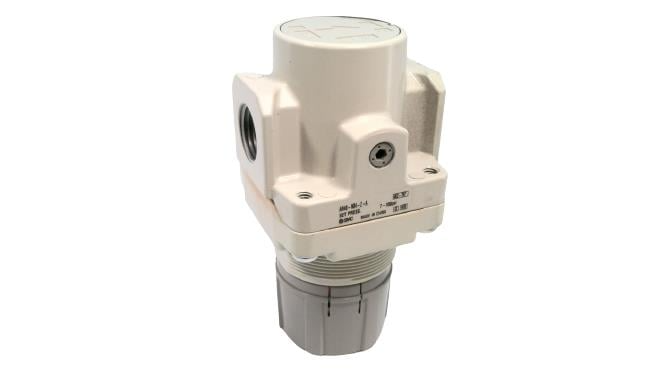

SMC AR40N04ZA (AR40-N04-Z-A) - Modular Regulator, NPT 1/2 port

SMC AR40N04ZA Modular Regulator — Energy-saving AR40-A body size 40 with NPT 1/2 ports and Z option. AR40-A series energy-saving modular air pressure regulator, body size 40, NPT 1/2 (N04) ports, Z semi-standard option, A (energy saving model). Relieving type; max operating pressure 1.0 MPa; set pressure range approx 0.05 to 0.85 MPa; fluid air; ambient/fluid temperature -5 to 60 C; proof pressure 1.5 MPa. AR10-AR40-A series discontinued 3/2025, replaced by AR20-AR40-D.

MPN: AR40-N04-Z-A · SKU: AR40N04ZA

AR40-N04-Z-A Applications

The SMC AR40-N04-Z-A is an energy-saving modular air pressure regulator, body size 40 with NPT 1/2 ports, carrying a Z semi-standard option and the A energy-saving spec that cuts pressure drop up to 50%. It holds downstream pressure steady in higher-flow pneumatic circuits within an FRL air-preparation stack, feeding cylinders, valves and air tools. The relieving design vents excess downstream pressure for accurate control in factory automation, packaging and machinery.

AR40-N04-Z-A Specifications
