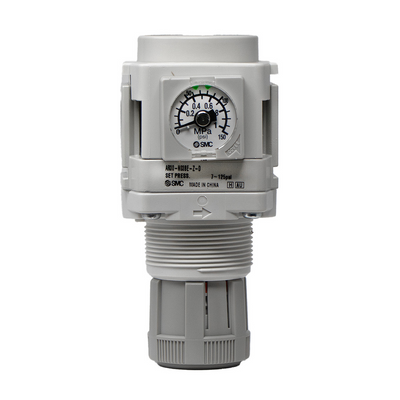

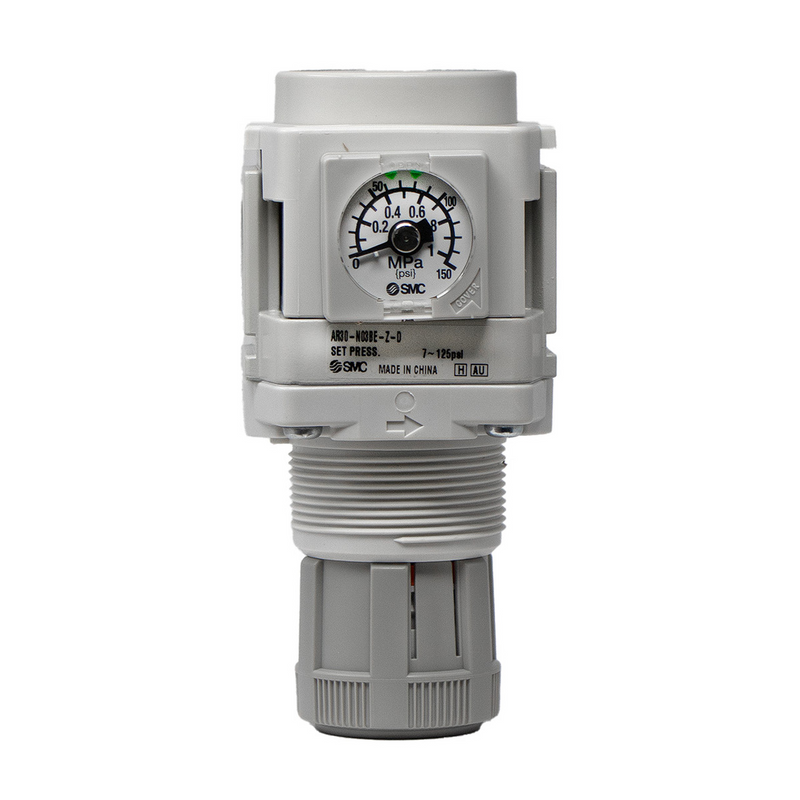

SMC AR30N03BEZB (AR30-N03B-E-Z-B) - Modular Regulator, NPT 3/8 port, embedded pressure gauge

SMC AR30N03BEZB Modular Regulator — Body size 30 with panel-mount bracket and square embedded pressure gauge. AR30 modular air pressure regulator, body size 30, NPT 3/8 (N03) ports, with bracket (B), square embedded-type pressure gauge (E), plus Z/B option configuration. Relieving type; max operating pressure 1.0 MPa; set pressure range approx 0.05 to 0.85 MPa; fluid air; ambient/fluid temperature -5 to 60 C; proof pressure 1.5 MPa.

MPN: AR30-N03B-E-Z-B · SKU: AR30N03BEZB

AR30-N03B-E-Z-B Applications

The SMC AR30-N03B-E-Z-B is a modular air pressure regulator used within FRL air preparation assemblies to hold downstream pressure steady as supply and demand fluctuate. Body size 30 with NPT 3/8 ports suits mid-flow pneumatic circuits feeding cylinders, valves and tooling. The mounting bracket allows panel fixing while the square embedded pressure gauge gives at-a-glance set-pressure readout. Its relieving design vents excess downstream pressure for accurate control in automation, machine tool and assembly line service.

AR30-N03B-E-Z-B Specifications
