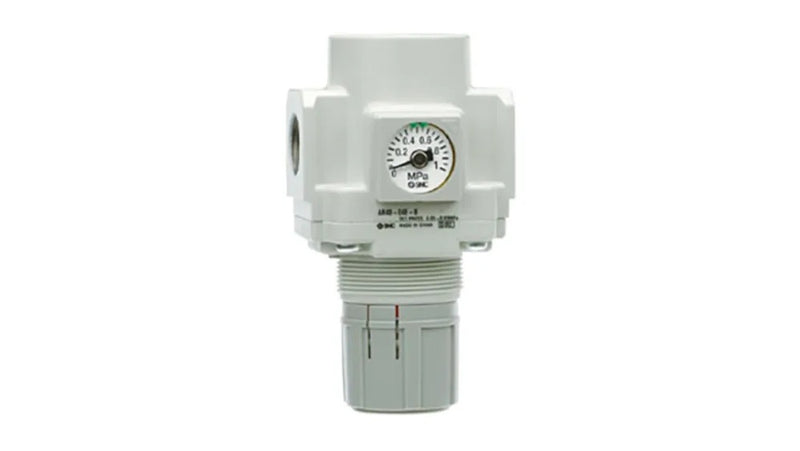

SMC AR30F02HB (AR30-F02H-B) - Modular Regulator, G1/4 Port

SMC AR30F02HB Modular Regulator — G1/4 port, with set nut (panel mount) and bracket. SMC AR30 modular regulator, body size 30, G1/4 (F02) inlet/outlet ports, 1/8 gauge port, supplied with panel-mount set nut (H) and mounting bracket (B), both loose. Relieving type, set pressure range 0.05 to 0.85 MPa, max operating pressure 1.0 MPa, proof pressure 1.5 MPa, air fluid, -5 to 60 C, downward knob. Nominal flow approx. 1500 L/min. Weight approx. 0.29 kg.

MPN: AR30-F02H-B · SKU: AR30F02HB

AR30-F02H-B Applications

The AR30-F02H-B is a modular air regulator on G1/4 ports supplied with both a panel-mount set nut and a mounting bracket, giving flexibility to fit it through a panel cutout or to a frame. It delivers adjustable, stable outlet pressure with a relieving construction and locking knob, and connects modularly with SMC air preparation equipment. Suited to control panels and machine builds needing front-panel-mounted pressure adjustment.

AR30-F02H-B Specifications
