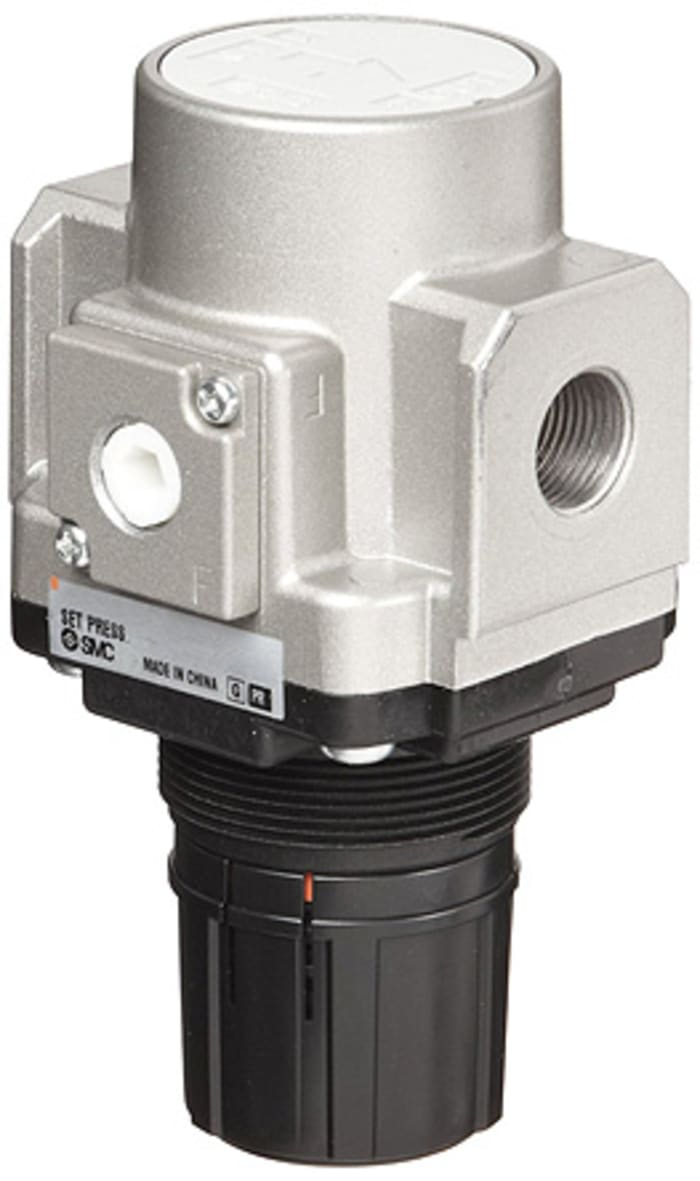

SMC AR30F02BX430 (AR30-F02-B-X430) - Modular Regulator, G1/4 Port

SMC AR30F02BX430 Modular Regulator — G1/4 port, with bracket, X430 high-temperature (-5 to 80 C, FKM seals). SMC AR30 modular regulator, body size 30, G1/4 (F02) inlet/outlet ports, 1/8 gauge port, supplied with mounting bracket (loose), X430 made-to-order high-temperature specification: ambient/fluid temperature -5 to 80 C with FKM rubber parts. Relieving type, set pressure range 0.05 to 0.85 MPa, max operating pressure 1.0 MPa, proof pressure 1.5 MPa, air fluid, downward knob. Weight approx. 0.29 kg.

MPN: AR30-F02-B-X430 · SKU: AR30F02BX430

AR30-F02-B-X430 Applications

The AR30-F02-B-X430 is a modular air regulator on G1/4 ports built to SMC's X430 high-temperature specification, rated -5 to 80 C with FKM (fluororubber) seals for hot-environment or elevated-media compressed air. It ships with a mounting bracket for frame or panel fitting. Suited to ovens, heat-treatment, engine and process areas where standard NBR-sealed regulators would degrade. Made-to-order; contact SMC for lead time.

AR30-F02-B-X430 Specifications
