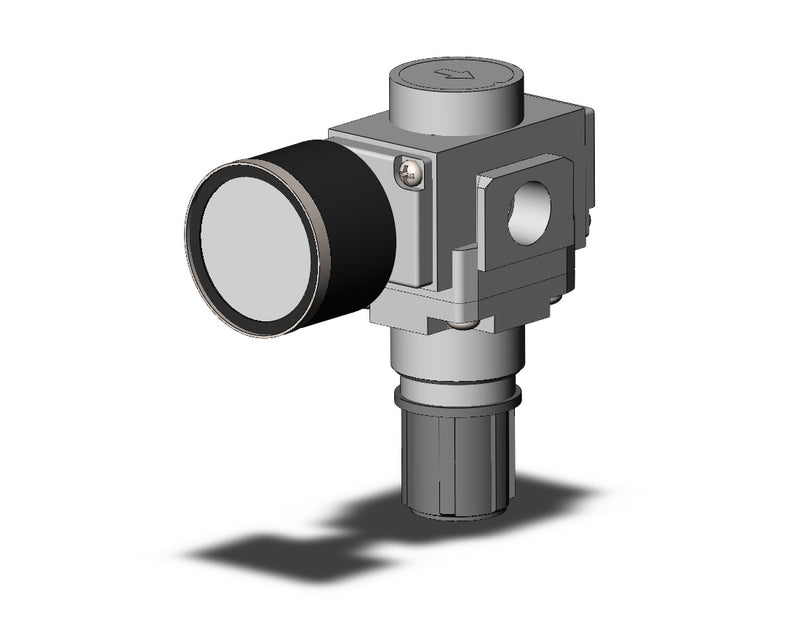

SMC AR2002GB Regulator — modular regulator, body 20, Rc 1/4 port, with gauge and bracket. Modular style pressure regulator, body size 20, port size 02 (1/4), from the SMC AR10-60 series. Supplied with round-type pressure gauge (G) and mounting bracket (B). Standard setting range 0.05 to 0.85 MPa, relieving type, connectable with other modular F.R.L. units.
MPN: AR20-02G-B · SKU: AR2002GB
AR20-02G-B Applications
The AR20 modular regulator holds a stable downstream air pressure independent of supply variation, protecting pneumatic devices and improving process consistency. This variant carries a 1/4 port for moderate flow along with an integrated pressure gauge for direct setpoint monitoring and a bracket for panel or frame mounting. It couples directly to matching modular filters and lubricators to form a compact air preparation station.
AR20-02G-B Specifications
| Brand | SMC | Manufacturer Part No. | AR20-02G-B |
| Type | Modular Regulator | Series | AR10-60 |
| Body Size | 20 | Port Size | Rc 1/4 (02) |
| Set Pressure Range | 0.05 to 0.85 MPa |
AR20-02G-B Datasheet & Manual
Download Datasheet & ManualSMC AR2002GB · PDF · Official SMC documentTrusted by
SMC AR2002GB (AR20-02G-B) - Regulator, Rc 1/4 port
Brand: SMC
