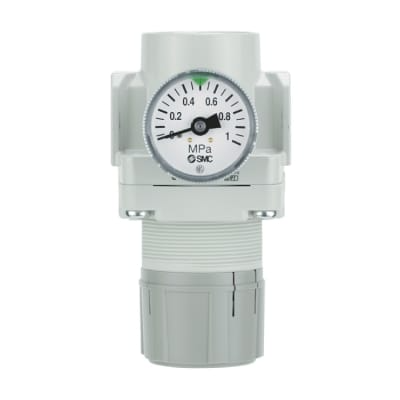

SMC AR2001BA (AR20-01BA) - Regulator, Rc 1/8 port

SMC AR2001BA Regulator — modular regulator, body 20, Rc 1/8 port, with bracket option. Modular style pressure regulator, body size 20, port size 01 (1/8), from the SMC AR10-60 series. Regulates and stabilises downstream air pressure; standard setting range 0.05 to 0.85 MPa. B/A suffixes denote bracket and option configuration. Relieving type with connectability to other modular F.R.L. units.

MPN: AR20-01BA · SKU: AR2001BA

AR20-01BA Applications

The AR20 modular regulator sets and maintains a stable downstream air pressure regardless of upstream fluctuation, protecting and optimising pneumatic equipment. Body size 20 with a 1/8 port suits lower-flow branch lines and machine sub-circuits. As part of the modular F.R.L. platform it couples directly to matching filters and lubricators, and the relieving design lets it vent excess downstream pressure when the setpoint is lowered.

AR20-01BA Specifications
