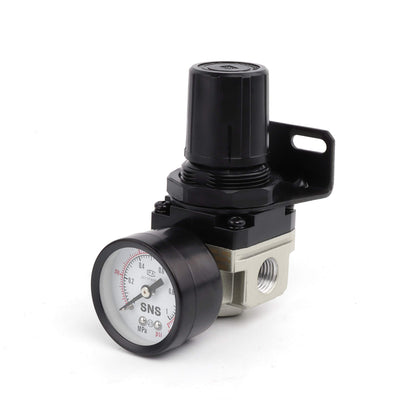

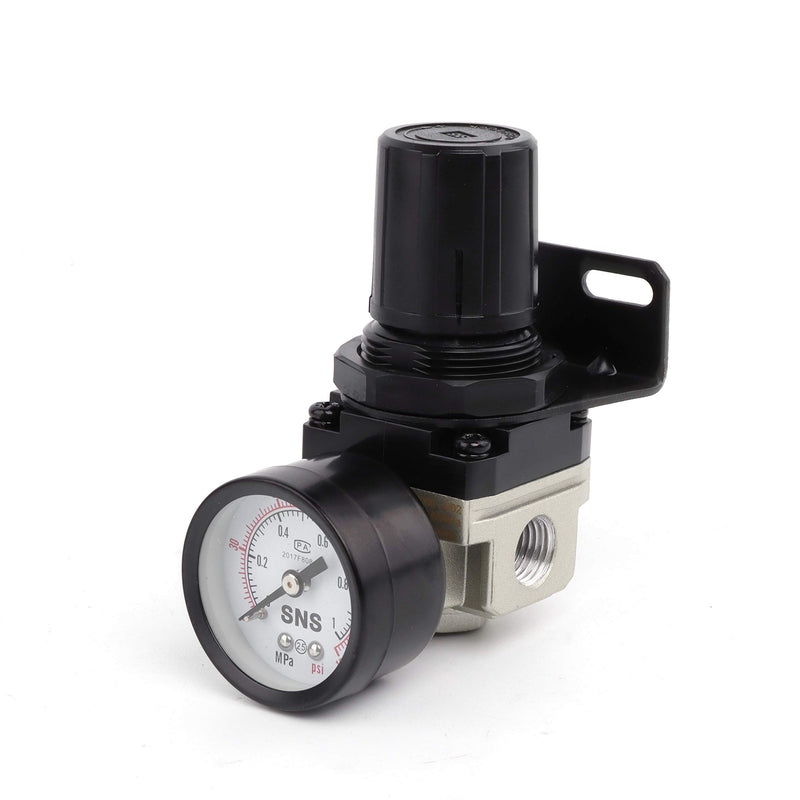

SMC AR2000N02 (AR2000-N02) - Modular Regulator, NPT1/4 Port, Relieving Type

SMC AR2000N02 Modular Regulator — NPT1/4 port, legacy AR2000 body, relieving type. SMC AR2000 legacy modular regulator, body size 2000 (equivalent to current AR20), NPT1/4 inlet/outlet ports, relieving exhaust construction. Air fluid, max operating pressure 1.0 MPa, proof pressure 1.5 MPa, set pressure range 0.05 to 0.85 MPa, ambient/fluid temperature -5 to 60 C. Aluminium die-cast body; superseded by current AR20 series.

MPN: AR2000-N02 · SKU: AR2000N02

AR2000-N02 Applications

The AR2000-N02 is a legacy-series modular air regulator supplied with NPT1/4 ports for imperial-thread compressed air systems. It delivers adjustable, stable outlet pressure with a relieving construction that vents excess downstream pressure when the setting is lowered. It connects modularly with SMC air preparation components. Distinct from the Rc-threaded AR2000-02; the current SMC equivalent is the AR20 series.

AR2000-N02 Specifications
