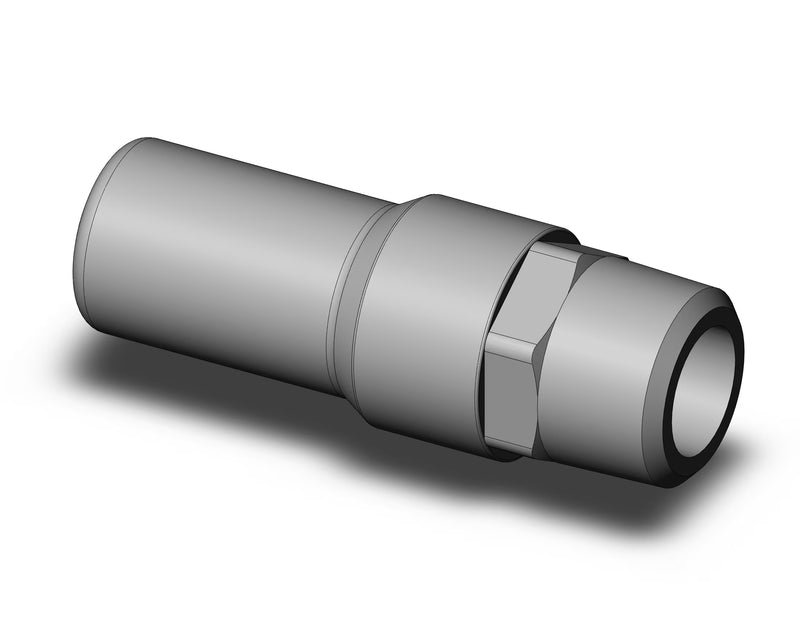

SMC AN40N04 (AN40-N04) - Silencer, 1/2 NPT male port, resin silencer

SMC AN40N04 Silencer — Compact resin silencer with 1/2 NPT thread and 30 dB(A) noise reduction. Body size 40; 1/2 NPT male threaded port; max operating pressure 1 MPa; operating temperature 5 to 60 deg C; UL94-V0 flame-resistant resin case; noise reduction 30 dB(A); effective area 90 mm2; sonic conductance 18 dm3/(s.bar); length 68 mm, width 24 mm.

MPN: AN40-N04 · SKU: AN40N04

AN40-N04 Applications

The AN40-N04 is a larger compact resin exhaust silencer with a 1/2 NPT male thread and higher flow capacity (effective area 90 mm2). It reduces pneumatic exhaust noise by 30 dB(A) while keeping back pressure low, suiting larger valves, cylinders, and manifolds in NPT-piped factory automation. The UL94-V0 flame-resistant case supports quieter, cleaner compressed-air discharge in industrial installations.

AN40-N04 Specifications
