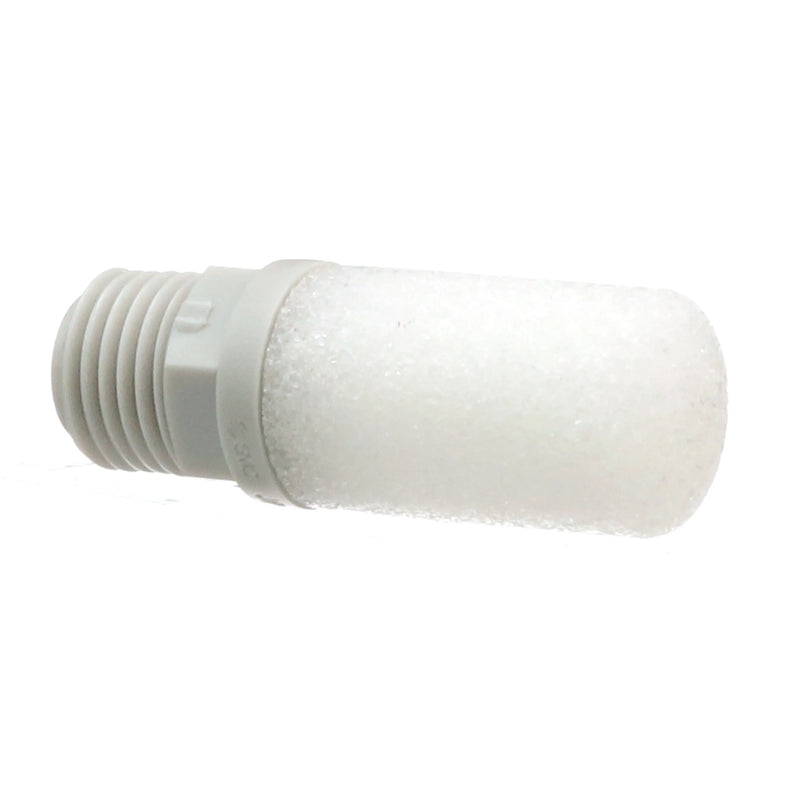

SMC AN20N02 (AN20-N02) - Silencer, NPT 1/4 Port, 30 dB Noise Reduction

SMC AN20N02 Silencer — Compact resin type, NPT 1/4 male thread variant, effective area 35 mm2. Compact resin type, Male thread NPT 1/4, Effective area 35 mm2, Sonic conductance 7 dm3/(s.bar), Recommended flow 3.0 m3/min (ANR) or less, Noise reduction 30 dB(A), Max operating pressure 1.0 MPa, Ambient/fluid temp 5 to 60 C, Weight 4 g.

MPN: AN20-N02 · SKU: AN20N02

AN20-N02 Applications

The AN20-N02 is the NPT-threaded version of SMC's compact resin AN20 silencer, offering an NPT 1/4 male thread for North American style ports. With a 35 mm2 effective area and recommended flow up to 3.0 m3/min, it suits mid-size valves and reduces exhaust noise by about 30 dB(A). The sintered resin sound-absorbing body attenuates venting noise while keeping back pressure low. Choose a silencer whose sonic conductance exceeds the valve to avoid choking exhaust, hand-tighten and finish on the hex flats, and replace it when clogging slows exhaust. Rated to 1.0 MPa inlet pressure.

AN20-N02 Specifications
