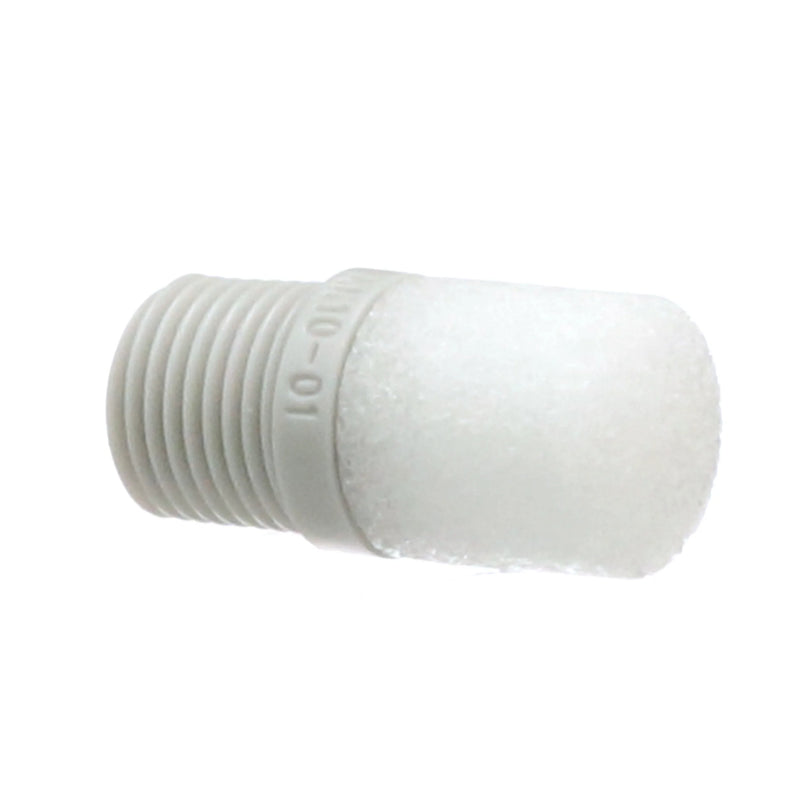

SMC AN10N01 (AN10-N01) - Silencer, NPT 1/8 Port, 30 dB Noise Reduction

SMC AN10N01 Silencer — Compact resin type, NPT 1/8 male thread variant, effective area 10 mm2. Compact resin type, Male thread NPT 1/8, Effective area 10 mm2, Sonic conductance 2 dm3/(s.bar), Recommended flow 0.8 m3/min (ANR) or less, Noise reduction 30 dB(A), Max operating pressure 1.0 MPa, Ambient/fluid temp 5 to 60 C, Weight 1 g.

MPN: AN10-N01 · SKU: AN10N01

AN10-N01 Applications

The AN10-N01 is the NPT-threaded version of SMC's compact resin AN10 silencer, giving an NPT 1/8 male thread for North American style ports. It cuts exhaust air noise by about 30 dB(A) with a 10 mm2 effective area and recommended flow of 0.8 m3/min or less, matching small solenoid valves. The sintered resin sound-absorbing body attenuates venting noise while keeping back pressure low. Pick a silencer whose sonic conductance exceeds the valve, hand-tighten the resin body, and replace it if exhaust speed falls off from clogging. Rated to 1.0 MPa inlet pressure.

AN10-N01 Specifications
