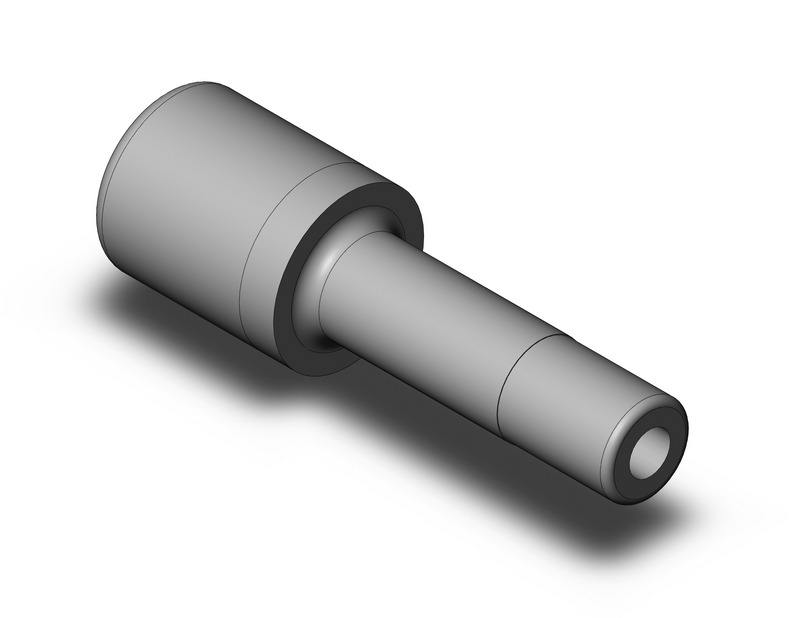

SMC AN10C07 (AN10-C07) - Silencer, 1/4 inch One-touch Fitting, 30 dB Noise Reduction

SMC AN10C07 Silencer — Compact resin type with one-touch fitting for 1/4 inch tube, effective area 20 mm2. Compact resin type, One-touch fitting connection for 1/4 inch tube, Effective area 20 mm2, Sonic conductance 4 dm3/(s.bar), Recommended flow 3.0 m3/min (ANR) or less, Noise reduction 30 dB(A), Max operating pressure 1.0 MPa, Ambient/fluid temp 5 to 60 C, Weight 1 g.

MPN: AN10-C07 · SKU: AN10C07

AN10-C07 Applications

The AN10-C07 is a compact resin silencer with an integral one-touch push-in fitting sized for 1/4 inch ( o1/4) tubing, letting it connect directly to a pneumatic line without threading. It reduces exhaust noise by about 30 dB(A) and offers a 20 mm2 effective area with recommended flow up to 3.0 m3/min. The one-touch connection speeds installation on exhaust or vent lines where a tube stub is preferred over a threaded port. Select a silencer with sonic conductance greater than the valve and replace it when clogging slows exhaust. Rated to 1.0 MPa inlet pressure.

AN10-C07 Specifications
