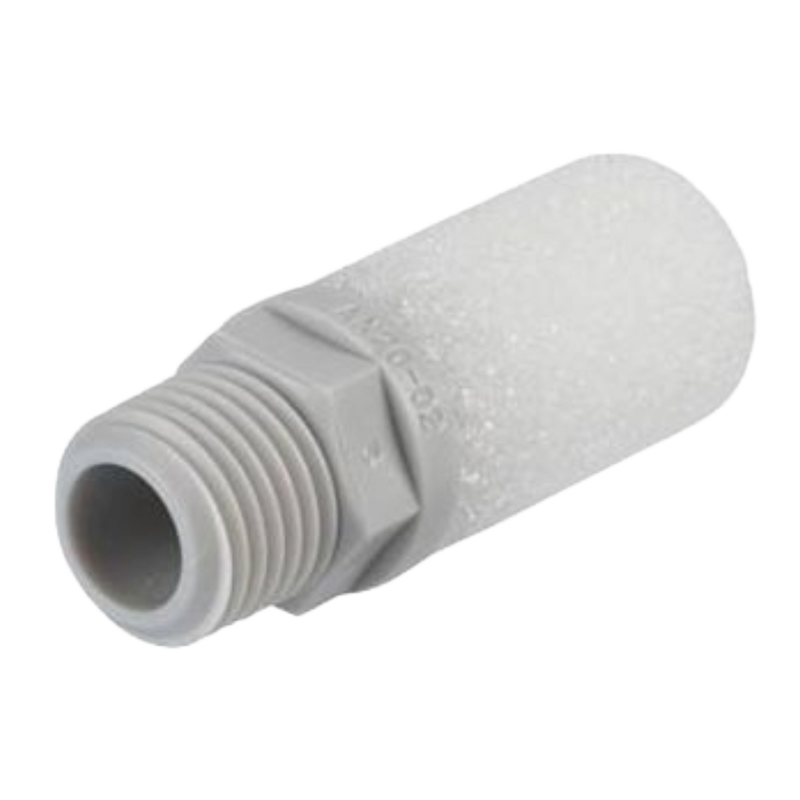

SMC AN1001 (AN10-01) - Silencer, R 1/8 Port, 30 dB Noise Reduction

SMC AN1001 Silencer — Compact resin type, R1/8 male thread, effective area 10 mm2. Compact resin type, Male thread R1/8, Effective area 10 mm2, Sonic conductance 2 dm3/(s.bar), Recommended flow 0.8 m3/min (ANR) or less, Noise reduction 30 dB(A), Max operating pressure 1.0 MPa, Ambient/fluid temp 5 to 60 C, Weight 1 g.

MPN: AN10-01 · SKU: AN1001

AN10-01 Applications

The AN10-01 is a compact resin-bodied silencer that threads into a solenoid valve or manifold exhaust port to cut exhaust air noise by about 30 dB(A). Its R1/8 male thread and 10 mm2 effective area suit small valves with recommended flow of 0.8 m3/min or less. The sintered resin sound-absorbing body keeps back pressure low while attenuating the sharp hiss of venting compressed air. Choose a silencer whose sonic conductance exceeds that of the valve, and replace it if exhaust speed drops due to clogging. Rated to 1.0 MPa maximum inlet pressure.

AN10-01 Specifications
