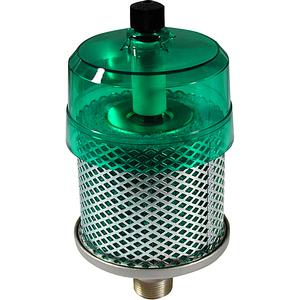

SMC AMC81014 (AMC810-14) - Exhaust Cleaner, R/G 1-1/2 Port, 6000 L/min Air Flow

SMC AMC81014 Exhaust Cleaner — Large AMC size (810), male 1-1/2 thread, 6000 L/min max air flow. Male thread 1-1/2, Max air flow 6000 L/min (ANR), Effective area 330 mm2, Sonic conductance 66 dm3/(s.bar), Noise reduction 35 dB or more, Oil mist removal 99.9% or more, Inlet pressure 0.1 MPa or less, Element AMC-EL8, Weight 1.2 kg.

MPN: AMC810-14 · SKU: AMC81014

AMC810-14 Applications

The AMC810-14 exhaust cleaner handles high-flow exhaust from large valves or centralized manifold piping, collecting oil mist while reducing noise by over 35 dB and removing 99.9% or more of oil mist. With a male 1-1/2 thread and 6000 L/min maximum air flow it fits big pneumatic systems that vent large volumes. A standard drain cock recovers separated oil. No mounting bracket is available for this size, so support the body separately. Mount vertically and replace the AMC-EL8 element at 0.1 MPa internal pressure or one year of use.

AMC810-14 Specifications
