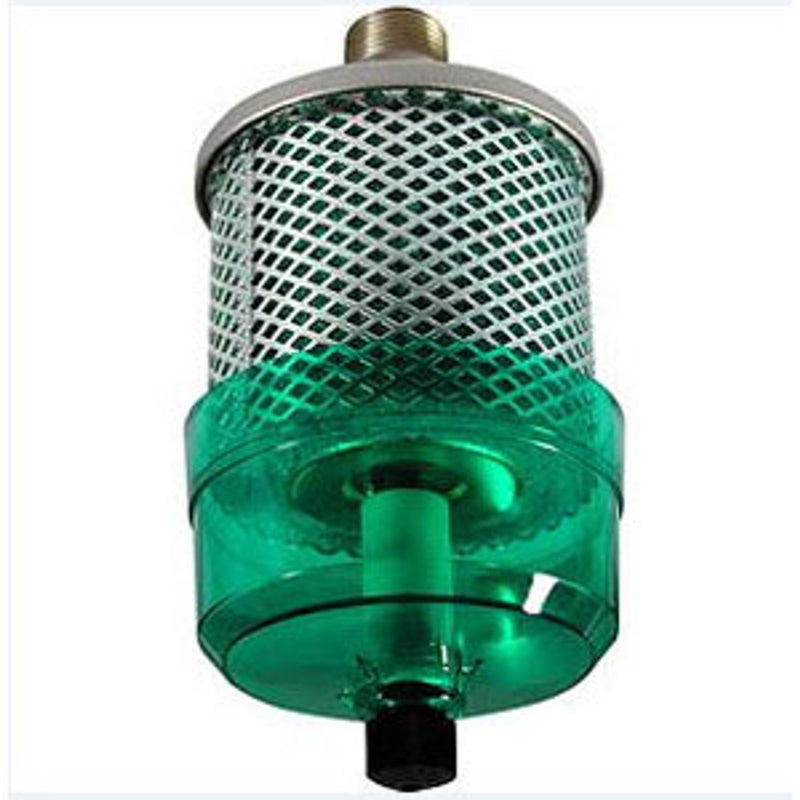

SMC AMC22002 (AMC220-02) - Exhaust Cleaner, Rc/G 1/4 Port, 200 L/min Air Flow

SMC AMC22002 Exhaust Cleaner — Smallest AMC size (220), female 1/4 thread, 200 L/min max air flow. Female thread 1/4, Max air flow 200 L/min (ANR), Effective area 12 mm2, Sonic conductance 2.4 dm3/(s.bar), Noise reduction 35 dB or more, Oil mist removal 99.9% or more, Inlet pressure 0.1 MPa or less, Element AMC-EL2, Weight 0.12 kg.

MPN: AMC220-02 · SKU: AMC22002

AMC220-02 Applications

The AMC220-02 exhaust cleaner mounts on a solenoid valve or manifold exhaust port to collect oil mist carried in exhausted compressed air while cutting noise by over 35 dB and removing 99.9% or more of oil mist. As the smallest AMC size with a female 1/4 thread and 200 L/min maximum air flow, it suits low-flow pilot or single-valve exhaust in clean environments. It includes a standard drain cock to recover collected oil. Mount vertically and replace the AMC-EL2 element when internal exhaust pressure reaches 0.1 MPa or after one year.

AMC220-02 Specifications
