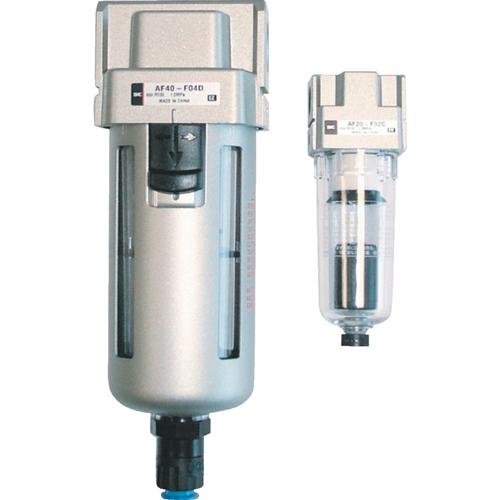

SMC AF30F03DA (AF30-F03D-A) - Air Filter, G3/8 port

SMC AF30F03DA Air Filter — Modular air filter, 5 micron, G3/8 (F03) port, auto drain, with bracket option. AF30 Mass Pro modular air filter with combined element-and-bowl construction; body size 30 with transparent bowl guard for 360-degree monitoring. Nominal filtration rating 5 micron. F03 = G3/8 port. D = float type auto drain (N.C., drain port with One-touch fitting). A = option (accessory/bracket). Modular design connects with other SMC air preparation equipment.

MPN: AF30-F03D-A · SKU: AF30F03DA

AF30-F03D-A Applications

Filters solid particles and condensed water from compressed air upstream of regulators, valves and cylinders on size-30 (G3/8) machine lines. The float-type auto drain (D) automatically expels collected condensate without manual attention, suiting installations that are hard to reach or run unattended. The one-piece element-and-bowl and transparent bowl guard allow fast 5 micron element changes and 360-degree monitoring, and the modular ports connect to matching AR regulators and AL lubricators.

AF30-F03D-A Specifications
