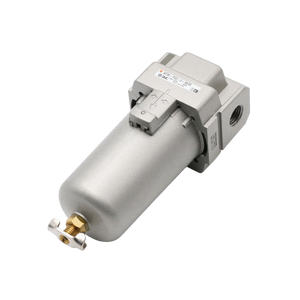

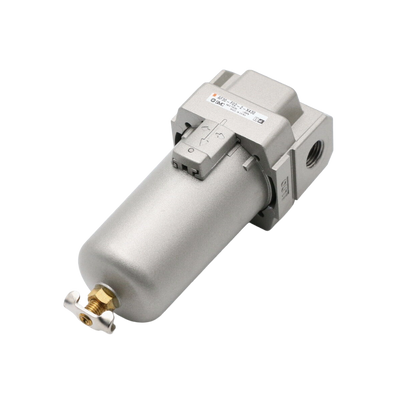

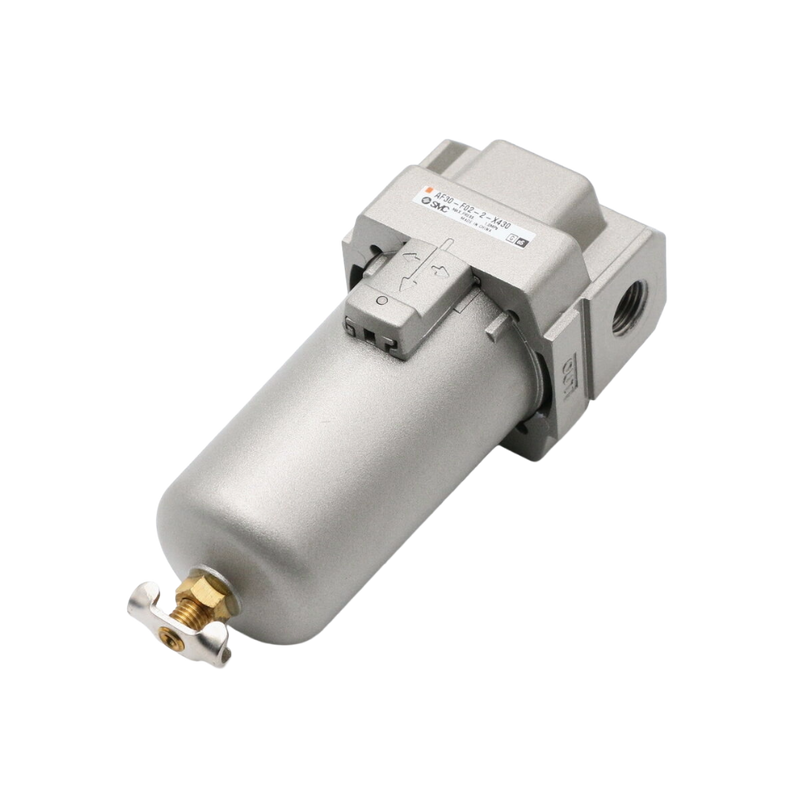

SMC AF30F022X430 (AF30-F02-2-X430) - Modular Air Filter, G1/4 Port, Metal Bowl
SMC AF30F022X430 Modular Air Filter — G1/4 port with metal bowl and X430 low-temperature made-to-order spec. Body size 30, G1/4 port (F = G thread), metal bowl, X430 made-to-order for low temperature, with drain cock, flow direction left to right.
MPN: AF30-F02-2-X430 · SKU: AF30F022X430
AF30-F02-2-X430 Applications
The SMC AF30F022X430 pairs a metal bowl with the X430 low-temperature made-to-order specification, which is what separates it from a standard AF30 polycarbonate-bowl filter. It is used in compressed-air lines that run in cold environments such as refrigerated warehouses, outdoor plant, and unheated process halls. It is suited for cold-store conveying, winter outdoor machinery, and chilled food and beverage lines. The metal bowl resists cold embrittlement and mechanical shock, and the G1/4 modular body joins directly to matching AR regulators and AL lubricators.
AF30-F02-2-X430 Specifications
| Brand | SMC | Manufacturer Part No. | AF30-F02-2-X430 |
| Product Type | Modular Air Filter | Series | AF10-60 (SMC: "AF10-60 Series Modular Type, Air Filters") |
| Body Size | 30 | Thread Type | F (G) |
| Port Size | 02 (1/4) | Option a | None |
| Option b | None | Semi-Standard a | 2 (Metal Bowl) |
| Semi-Standard b | Flow Direction: Left to Right, With Drain Cock | Made To Order | X430 (For Low Temperature) |
| Production Status | Manufacture discontinued since 3/2025; replacement series AF20-AF40-D |
