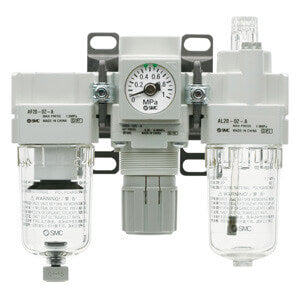

SMC AC40F04B (AC40-F04-B) - Modular F.R.L. Air Combination Unit, G1/2 Port

Name: SMC AC40F04B (AC40-F04-B) - Modular F.R.L. Air Combination Unit, G1/2 Port
Brand: SMC
SKU: AC40F04B
Price: 421.00 AED
Availability: BackOrder

Brand: SMC|Part No: AC40F04B

AED 421.00

Quantity

Add to Quote

SMC AC40F04B Modular F.R.L. Air Combination Unit — Size 40 F.R.L. (filter + regulator + lubricator) with G1/2 ports. SMC AC40-F04-B modular F.R.L. air combination unit combining air filter, regulator and lubricator in a size 40 body with G1/2 ports. Rated to 1.0 MPa max operating pressure, 1.5 MPa proof pressure, 5 um nominal filtration, with a relieving-type regulator, polycarbonate bowl and set pressure range 0.05 to 0.85 MPa for -5 to 60 degrees C air service.

MPN: AC40-F04-B · SKU: AC40F04B

AC40-F04-B Applications

Prepares clean, regulated and lubricated compressed air upstream of pneumatic valves, cylinders and tools.

AC40-F04-B Specifications

Brand	SMC	Manufacturer Part No.	AC40-F04-B
Series	AC	Combination Content	Air Filter + Regulator + Lubricator (F.R.L.)
Body Size	40	Port Size	G1/2
Fluid	Air	Ambient and Fluid Temperature	-5 to 60 C (with no freezing)
Proof Pressure	1.5 MPa	Maximum Operating Pressure	1.0 MPa
Set Pressure Range	0.05 to 0.85 MPa	Nominal Filtration Rating	5 um
Bowl Material	Polycarbonate	Regulator Construction	Relieving type
