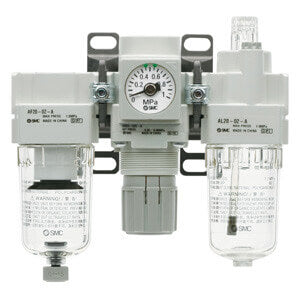

SMC AC30F03GB (AC30-F03G-B) - Modular F.R.L. Air Combination Unit, G3/8 Port

Name: SMC AC30F03GB (AC30-F03G-B) - Modular F.R.L. Air Combination Unit, G3/8 Port
Brand: SMC
SKU: AC30F03GB
Price: 379.00 AED
Availability: BackOrder

Brand: SMC|Part No: AC30F03GB

AED 379.00

Quantity

Add to Quote

SMC AC30F03GB Modular F.R.L. Air Combination Unit — F.R.L. (filter + regulator + lubricator) with round pressure gauge. SMC AC30-F03G-B modular F.R.L. air combination unit combining air filter, regulator and lubricator in a size 30 body with G3/8 ports and a round type pressure gauge. Rated to 1.0 MPa max operating pressure, 1.5 MPa proof pressure, 5 um nominal filtration, with a relieving-type regulator, polycarbonate bowl and set pressure range 0.05 to 0.85 MPa for -5 to 60 degrees C air service.

MPN: AC30-F03G-B · SKU: AC30F03GB

AC30-F03G-B Applications

Prepares clean, regulated and lubricated compressed air upstream of pneumatic valves, cylinders and tools.

AC30-F03G-B Specifications

Brand	SMC	Manufacturer Part No.	AC30-F03G-B
Series	AC	Combination Content	Air Filter + Regulator + Lubricator (F.R.L.)
Body Size	30	Port Size	G3/8
Pressure Gauge	Round type (with limit indicator)	Fluid	Air
Ambient and Fluid Temperature	-5 to 60 C (with no freezing)	Proof Pressure	1.5 MPa
Maximum Operating Pressure	1.0 MPa	Set Pressure Range	0.05 to 0.85 MPa
Nominal Filtration Rating	5 um	Bowl Material	Polycarbonate
Regulator Construction	Relieving type
