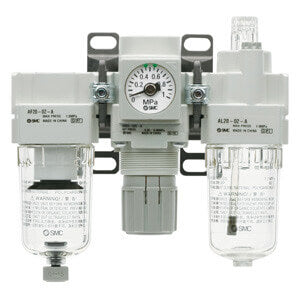

SMC AC30F03B (AC30-F03-B) - Filter + Regulator + Lubricator F.R.L. Combination Unit, G3/8 Port
SMC AC30F03B Filter + Regulator + Lubricator F.R.L. Combination Unit — G3/8 port full F.R.L. (filter + regulator + lubricator), body size 30. SMC AC30-F03-B modular F.R.L. combination unit (AC-B series), body size 30, air filter + regulator + lubricator (AF+AR+AL). G3/8 (F03) ports. Fluid: air. Proof pressure 1.5 MPa, max operating pressure 1.0 MPa, set pressure range 0.05 to 0.85 MPa. Ambient/fluid temperature -5 to 60 C. Nominal filtration rating 5 micron. Polycarbonate bowl, relieving type regulator.
MPN: AC30-F03-B · SKU: AC30F03B
AC30-F03-B Applications
Complete modular air-preparation set that filters, regulates and lubricates compressed air at a machine or line inlet.
AC30-F03-B Specifications
| Brand | SMC | Manufacturer Part No. | AC30-F03-B |
| Product Type | Air Preparation Units | Series | AC-B (AC30-B) |
| Combination Content | Air Filter + Regulator + Lubricator (AF+AR+AL) | Body Size | 30 |
| Port Size | G3/8 (F03) | Fluid | Air |
| Proof Pressure | 1.5 MPa | Max Operating Pressure | 1.0 MPa |
| Set Pressure Range | 0.05 to 0.85 MPa | Ambient and Fluid Temperature | -5 to 60 C (no freezing) |
| Nominal Filtration Rating | 5 micron | Bowl Material | Polycarbonate |
| Regulator Construction | Relieving type |
