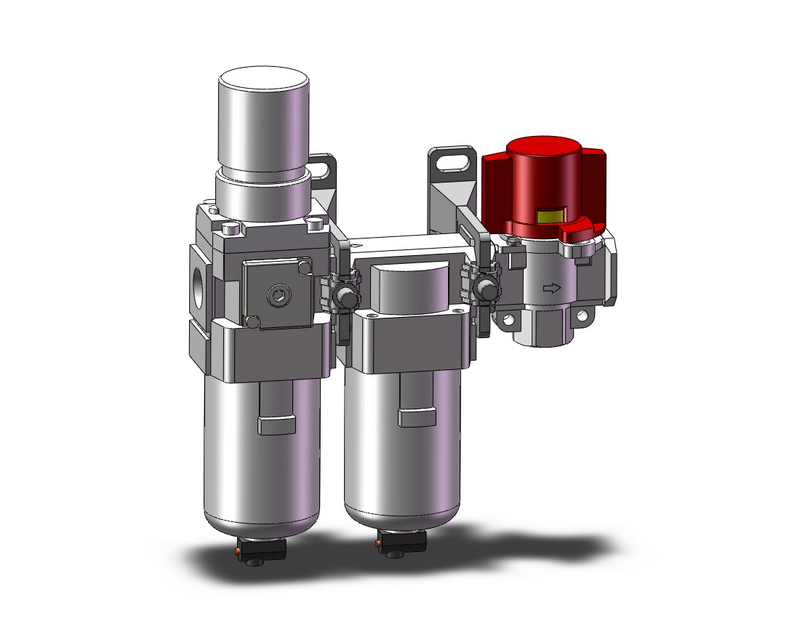

SMC AC30DF03VD (AC30D-F03V-D) - Air Combination Unit, G3/8 port

SMC AC30DF03VD Air Combination Unit — Modular filter regulator + mist separator combination, G3/8 (F03), residual pressure release valve, auto drain. AC30D-series modular air combination unit combining a filter regulator and a mist separator on the size-30 body. F03 = G3/8 port. V = residual pressure release valve (3-port bleed). D = float type auto drain (N.C.). Modular design connects with other SMC air preparation equipment. Point-of-use compressed air conditioning combining regulation, particulate filtration and oil-mist removal.

MPN: AC30D-F03V-D · SKU: AC30DF03VD

AC30D-F03V-D Applications

Provides complete point-of-use air conditioning in one modular assembly: it regulates pressure, filters solid particles and removes oil mist to protect downstream valves, cylinders and instrumentation. The size-30 (G3/8) unit suits mid-flow machine air lines. The residual pressure release valve (V) safely exhausts trapped downstream air for maintenance and lock-out, while the float-type auto drain (D) expels collected condensate automatically without manual attention.

AC30D-F03V-D Specifications
