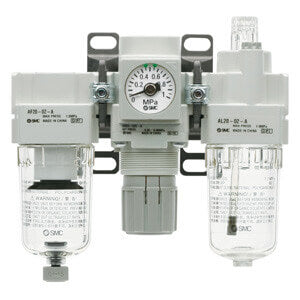

SMC AC30AF03B (AC30A-F03-B) - Modular Filter Regulator + Lubricator Unit, G3/8 Port

Name: SMC AC30AF03B (AC30A-F03-B) - Modular Filter Regulator + Lubricator Unit, G3/8 Port
Brand: SMC
SKU: AC30AF03B
Price: 298.00 AED
Availability: BackOrder

Brand: SMC|Part No: AC30AF03B

AED 298.00

Quantity

Add to Quote

SMC AC30AF03B Modular Filter Regulator + Lubricator Unit — Filter regulator + lubricator combination with G3/8 ports. SMC AC30A-F03-B modular air combination unit pairing a filter regulator with a lubricator in a size 30 body with G3/8 ports. Rated to 1.0 MPa max operating pressure, 1.5 MPa proof pressure, 5 um nominal filtration, with a relieving-type regulator, polycarbonate bowl and set pressure range 0.05 to 0.85 MPa for -5 to 60 degrees C air service.

MPN: AC30A-F03-B · SKU: AC30AF03B

AC30A-F03-B Applications

Delivers clean, regulated and lubricated compressed air ahead of pneumatic actuators and tools.

AC30A-F03-B Specifications

Brand	SMC	Manufacturer Part No.	AC30A-F03-B
Series	AC	Combination Content	Filter Regulator + Lubricator
Body Size	30	Port Size	G3/8
Fluid	Air	Ambient and Fluid Temperature	-5 to 60 C (with no freezing)
Proof Pressure	1.5 MPa	Maximum Operating Pressure	1.0 MPa
Set Pressure Range	0.05 to 0.85 MPa	Nominal Filtration Rating	5 um
Bowl Material	Polycarbonate	Regulator Construction	Relieving type
