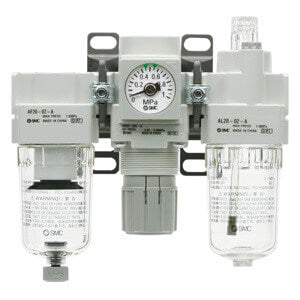

SMC AC20F02GB (AC20-F02G-B) - Modular F.R.L. Unit, G1/4 Port, With Gauge

SMC AC20F02GB Modular F.R.L. Unit — G1/4 port with pressure gauge. Air Filter + Regulator + Lubricator combination, G1/4 port, with pressure gauge, 5 micron filtration, 0.05 to 0.85 MPa set pressure, 1.0 MPa max operating pressure, polycarbonate bowl, relieving-type regulator.

MPN: AC20-F02G-B · SKU: AC20F02GB

AC20-F02G-B Applications

The AC20 modular F.R.L. unit combines air filtration, pressure regulation and lubrication for compact point-of-use air preparation. It removes 5 micron particulate and moisture, regulates outlet pressure against supply variations, and meters lubricating oil to downstream tools and cylinders. The built-in pressure gauge makes setting and monitoring outlet pressure straightforward. It is well suited to automotive assembly, packaging, material handling, machine tools and general factory automation where clean, regulated, lubricated air keeps pneumatic actuators and valves running reliably.

AC20-F02G-B Specifications
