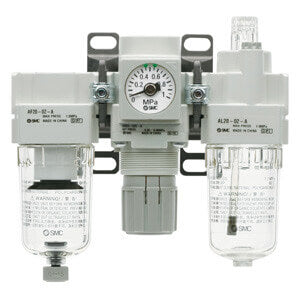

SMC AC20F02CB (AC20-F02C-B) - Modular F.R.L. Unit, G1/4 Port, With Auto Drain

SMC AC20F02CB Modular F.R.L. Unit — G1/4 port with N.C. auto drain. Air Filter + Regulator + Lubricator combination, G1/4 port, normally closed (N.C.) auto drain, 5 micron filtration, 0.05 to 0.85 MPa set pressure, 1.0 MPa max operating pressure, polycarbonate bowl, relieving-type regulator.

MPN: AC20-F02C-B · SKU: AC20F02CB

AC20-F02C-B Applications

The AC20 modular F.R.L. unit brings filtration, pressure regulation and lubrication together for point-of-use air preparation. It removes 5 micron particulate and moisture, regulates and stabilizes outlet pressure, and lubricates downstream pneumatics. This variant adds a normally closed automatic drain that expels collected condensate without manual intervention, ideal for high-humidity environments, unattended equipment and continuous-duty lines in automotive, packaging, material handling and general machine building where consistent moisture removal protects valves and actuators.

AC20-F02C-B Specifications
