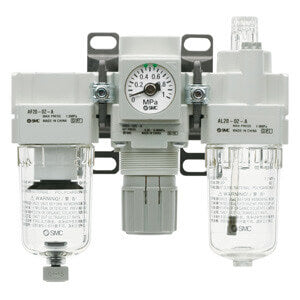

SMC AC20F02B (AC20-F02-B) - Modular F.R.L. Unit, G1/4 Port, Manual Drain
SMC AC20F02B Modular F.R.L. Unit — G1/4 port, base configuration with manual drain. Air Filter + Regulator + Lubricator combination, G1/4 port, manual drain, 5 micron filtration, 0.05 to 0.85 MPa set pressure, 1.0 MPa max operating pressure, polycarbonate bowl, relieving-type regulator.
MPN: AC20-F02-B · SKU: AC20F02B
AC20-F02-B Applications
The AC20 modular F.R.L. unit integrates an air filter, regulator and lubricator to prepare compressed air at the machine. It strips out 5 micron and larger particulate and condensed moisture, regulates outlet pressure against inlet fluctuations, and meters oil into the airstream to lubricate downstream pneumatic tools and cylinders. It is widely used in automotive, packaging, material handling and general factory automation lines. The G1/4 port supports the standard flow range of the AC20 body, and the base configuration uses a manual drain, making it a versatile default for lubricated pneumatic circuits.
AC20-F02-B Specifications
| Brand | SMC | Manufacturer Part No. | AC20-F02-B |
| Product Type | Modular F.R.L. Unit (Air Filter + Regulator + Lubricator) | Series | AC20 |
| Port Size | G1/4 | Fluid | Air |
| Nominal Filtration Rating | 5 micron | Set Pressure Range | 0.05 to 0.85 MPa |
| Max. Operating Pressure | 1.0 MPa | Proof Pressure | 1.5 MPa |
| Ambient and Fluid Temperature | -5 to 60 C (No freezing) | Bowl Material | Polycarbonate |
| Regulator Construction | Relieving type | Drain | Manual drain |
