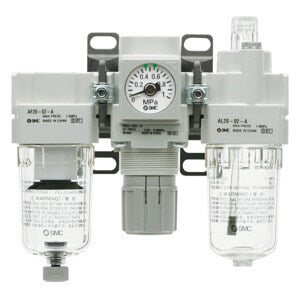

SMC AC20F01GB (AC20-F01G-B) - Modular F.R.L. Unit, G1/8 Port, With Gauge

SMC AC20F01GB Modular F.R.L. Unit — G1/8 port with pressure gauge. Air Filter + Regulator + Lubricator combination, G1/8 port, with pressure gauge, 5 micron filtration, 0.05 to 0.85 MPa set pressure, 1.0 MPa max operating pressure, polycarbonate bowl, relieving-type regulator.

MPN: AC20-F01G-B · SKU: AC20F01GB

AC20-F01G-B Applications

The AC20 modular F.R.L. unit combines an air filter, regulator and lubricator into one compact station that conditions compressed air at the point of use. It removes solid particles down to 5 micron and oversaturated moisture, sets and stabilizes downstream pressure, and adds controlled lubrication for pneumatic tools, cylinders and valves. Typical applications include automotive assembly lines, packaging and material-handling machinery, machine tools and general factory automation where clean, regulated, lubricated air protects actuators and solenoid valves. The G1/8 port suits lower-flow branch lines, and the integrated gauge simplifies pressure setting.

AC20-F01G-B Specifications
