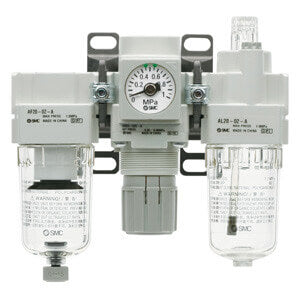

SMC AC20AF01B (AC20A-F01-B) - Filter Regulator + Lubricator Unit, G1/8 Port

SMC AC20AF01B Filter Regulator + Lubricator Unit — G1/8 port, filter-regulator plus lubricator (2-unit). Filter Regulator (AW) + Lubricator (AL) combination, G1/8 port, 5 micron filtration, 0.05 to 0.85 MPa set pressure, 1.0 MPa max operating pressure, polycarbonate bowl, relieving-type regulator, manual drain.

MPN: AC20A-F01-B · SKU: AC20AF01B

AC20A-F01-B Applications

The AC20A is a two-unit modular air-preparation combination pairing a filter regulator (integrated air filter and regulator) with a lubricator. It removes 5 micron particulate and moisture while regulating outlet pressure in a single compact body, then adds metered oil for downstream pneumatic tools and cylinders. This space-saving arrangement suits automotive, packaging, material-handling and general factory-automation lines that need clean, regulated and lubricated air. The G1/8 port fits lower-flow branch circuits where a full three-unit F.R.L. is not required.

AC20A-F01-B Specifications
