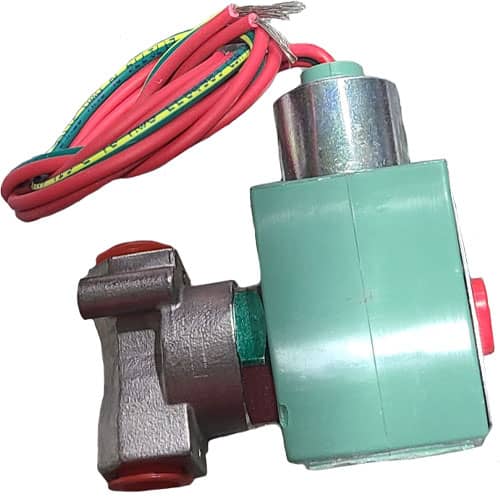

ASCO 8262H007 - 2-Way Direct-Acting Solenoid Valve, 1/4" NPT Normally Closed, Stainless Steel
ASCO 8262H007 2-Way Direct-Acting Solenoid Valve — stainless steel body, 1/8" orifice. 2/2 normally closed, stainless steel body, 1/4" NPT, 1/8" orifice, Cv 0.35, direct-acting poppet, NBR seating, air/inert gas/water/light oil.
MPN / SKU: 8262H007
8262H007 Applications
The ASCO 8262H007 is a high-flow, general-service 2-way solenoid valve from the 262-S Series, built in stainless steel for corrosive, air, inert gas, water, and light oil service. Its direct-acting poppet design opens and closes fast without minimum pressure, making it well suited to car wash equipment, air compressors, pumps, laundry machinery, industrial water control, and dust-collector systems where reliable on/off shut-off of aggressive or clean media is required in continuous-duty industrial operation.
8262H007 Specifications
| Function | 2-Way / 2/2 Normally Closed | Body Material | Stainless Steel |
| Pipe / Port Size | 1/4" NPT | Orifice Size | 1/8 in |
| Flow (Cv) | 0.35 | Valve Actuation | Solenoid - Direct Acting |
| Media | Air, Inert Gas, Water, Light Oil | Seating Elastomer | NBR |
| Series | 262-S | Item Status | Active |
