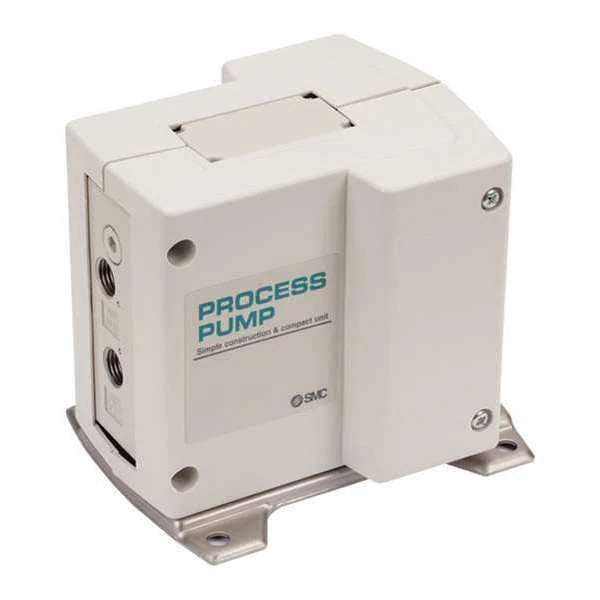

SMC 56PA5110F04 (56-PA5110-F04) - Process Pump, Rc1/2 port, double-acting diaphragm pump

SMC 56PA5110F04 Process Pump — Air-operated diaphragm process pump, copper-free/fluorine-free (56-) special, F04 port. Series PA double-acting compact large-capacity diaphragm pump for transfer and recovery of fluids; air-operated (external switching) type; flow rate 1 to 24 L/min; discharge pressure 0 to 0.4 MPa; pilot air pressure 0.1 to 0.5 MPa; max air displacement 250 L/min (ANR) or less; suction lift up to 0.5 m (dry); ADC12 aluminium body; PTFE diaphragm. 56- prefix denotes copper-free/fluorine-free special specification. F04 = Rc1/2 port.

MPN: 56-PA5110-F04 · SKU: 56PA5110F04

56-PA5110-F04 Applications

Used to transfer and recover a wide range of process fluids including chemicals, coating materials and slurries. The air-operated PA5110 is externally switched by pilot air, requires no electricity and is self-priming, making it suited to hazardous or explosive atmospheres. The copper-free/fluorine-free 56- specification suits electronics, semiconductor and paint-line applications where copper or fluorine contamination must be avoided. Diaphragm and check valves replace individually for easy maintenance.

56-PA5110-F04 Specifications
