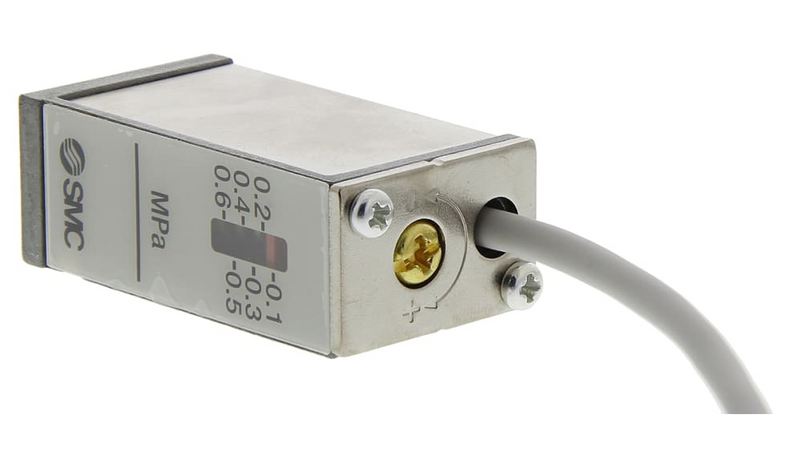

SMC 56IS1001S6L (56-IS10-01S-6L) - ATEX Compliant Pressure Switch, 0.1 to 0.6 MPa Set Range, 3 m Lead Wire

SMC 56IS1001S6L ATEX Compliant Pressure Switch — ATEX Category 3 reed switch type, 0.1 to 0.6 MPa set range with a 3 m lead wire. ATEX Category 3 explosion-proof construction, 56-IS10 series reed switch type pressure switch, R thread, with seal, set pressure range 0.1 to 0.6 MPa, 3 m lead wire, MPa scale plate.

MPN: 56-IS10-01S-6L · SKU: 56IS1001S6L

56-IS10-01S-6L Applications

The SMC 56IS1001S6L is an ATEX Category 3 certified pressure switch that gives a simple electrical signal when compressed-air pressure crosses its set point, for use in classified potentially explosive atmospheres. It is suited to confirming clamp or chuck pressure before a machine cycle starts, interlocking equipment against loss of air supply, and warning of a blocked filter in solvent, paint and dust-laden areas. The reed switch element gives a clean, volt-free contact with no electronics at the sensing point, and the adjustable 0.1 to 0.6 MPa range with a factory-fitted 3 m lead wire makes it straightforward to install in certified enclosures.

56-IS10-01S-6L Specifications
